Home >> Hyundai >> 2010 >> Genesis Coupe L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Carrier

Differential Carrier

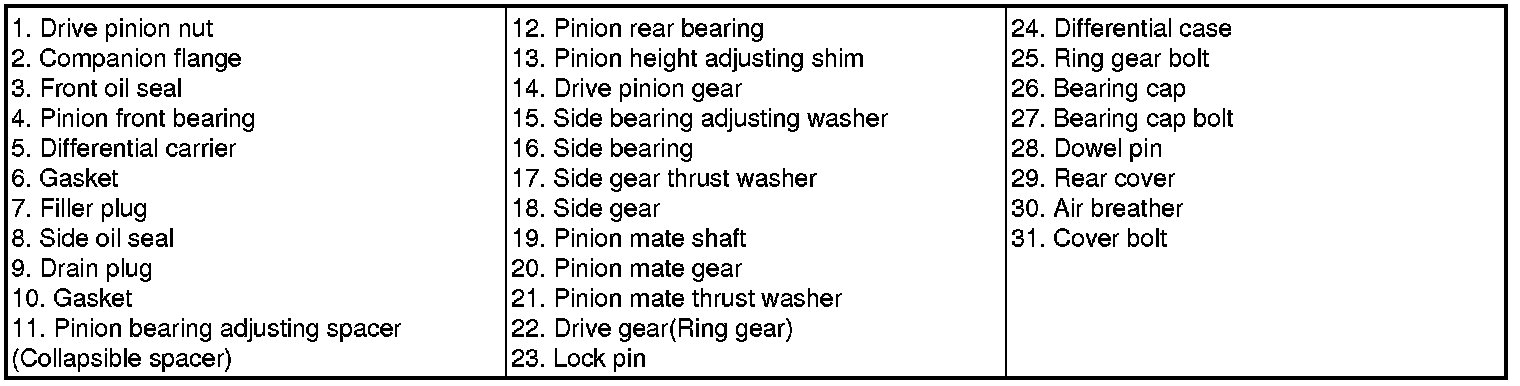

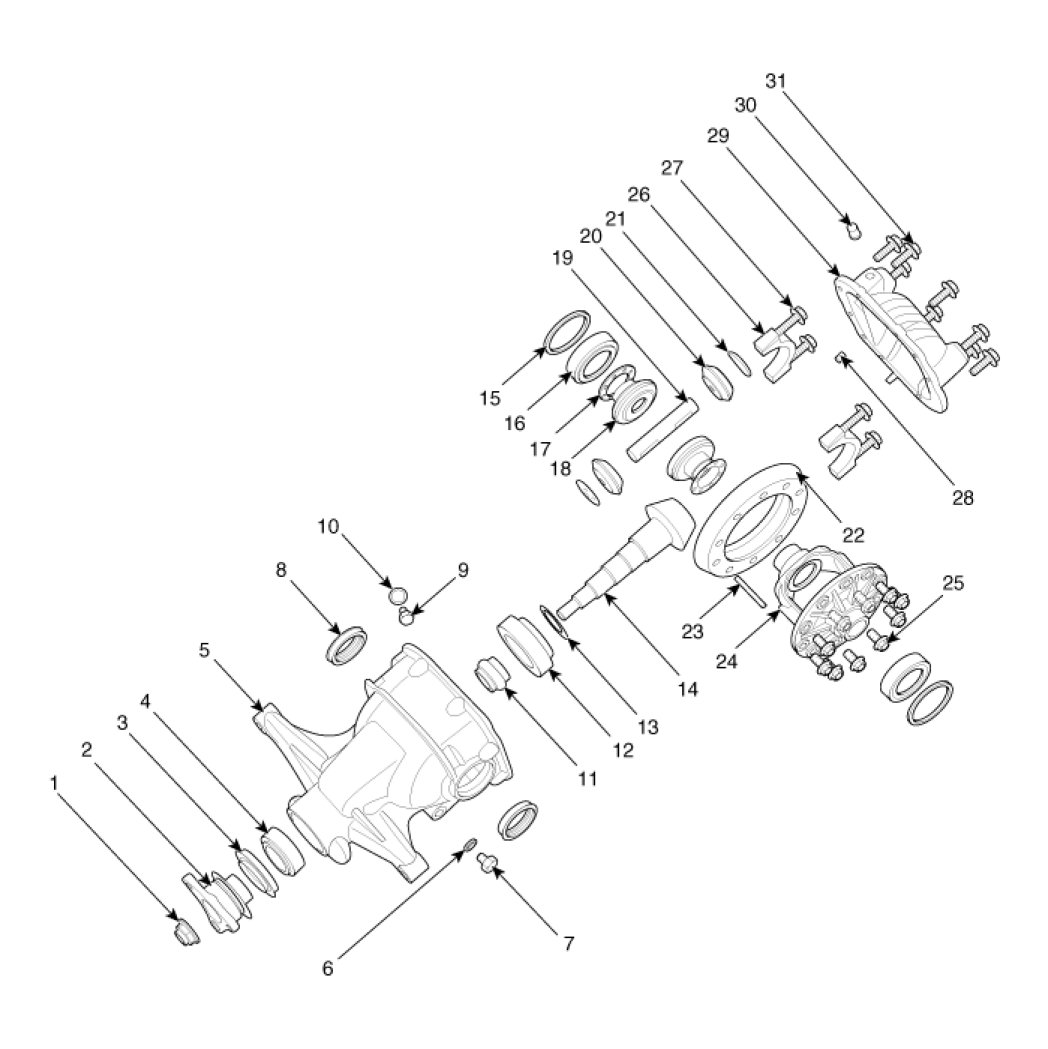

Component (Open Type)

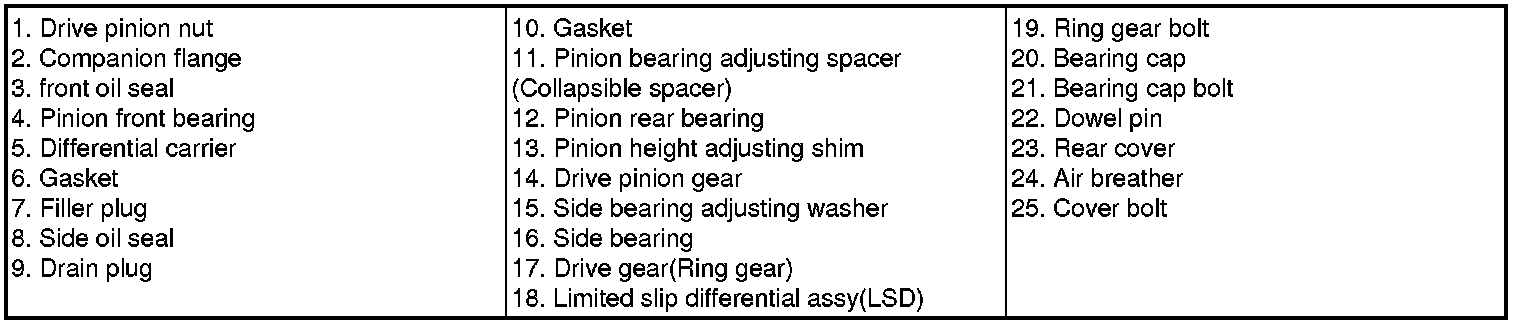

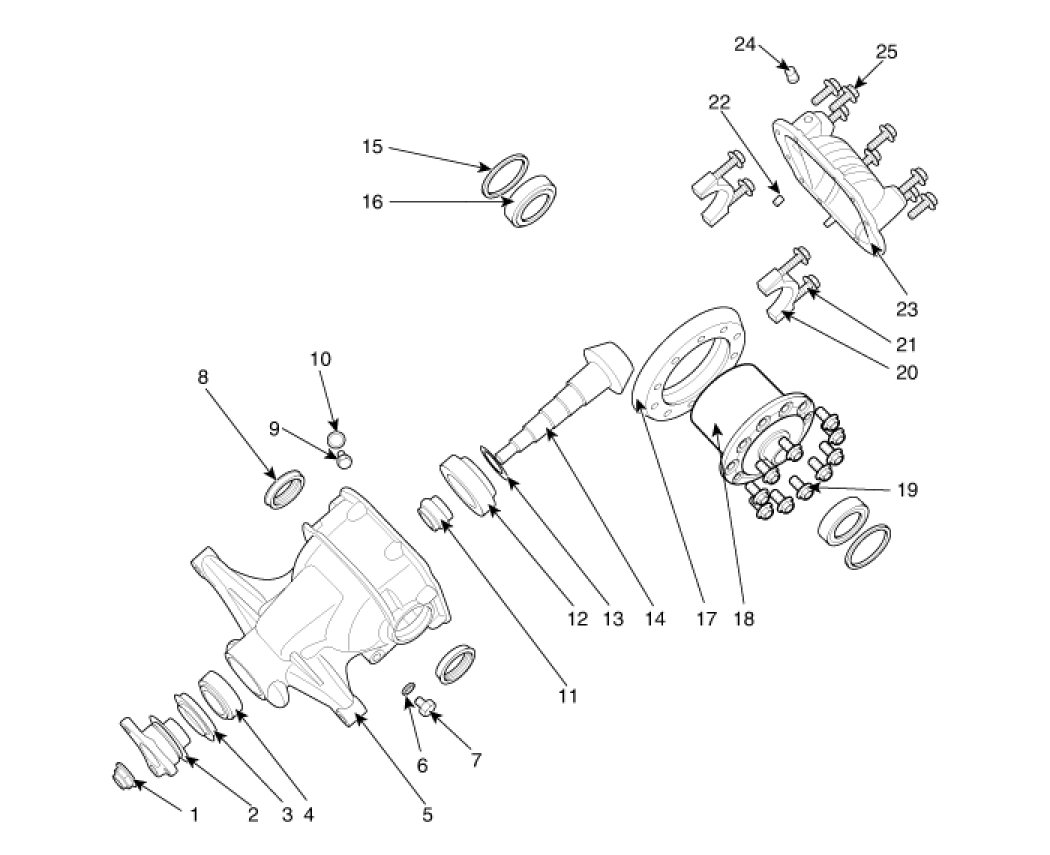

Component (LSD Type)
