Home >> Hyundai >> 2010 >> Genesis Coupe L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Control Module, A/T

Control Module, A/T





TCU Input/Output Signal

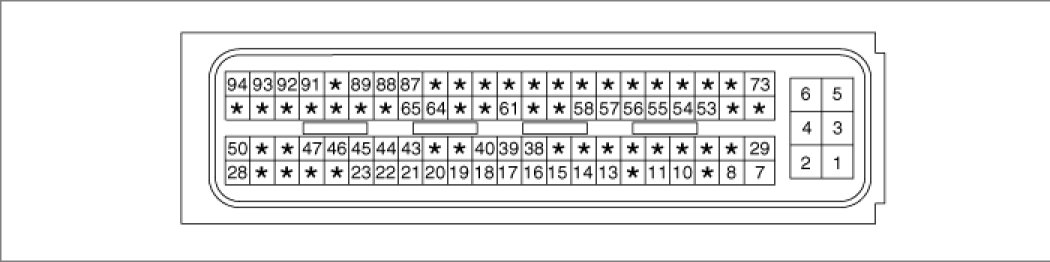

TCU Connector

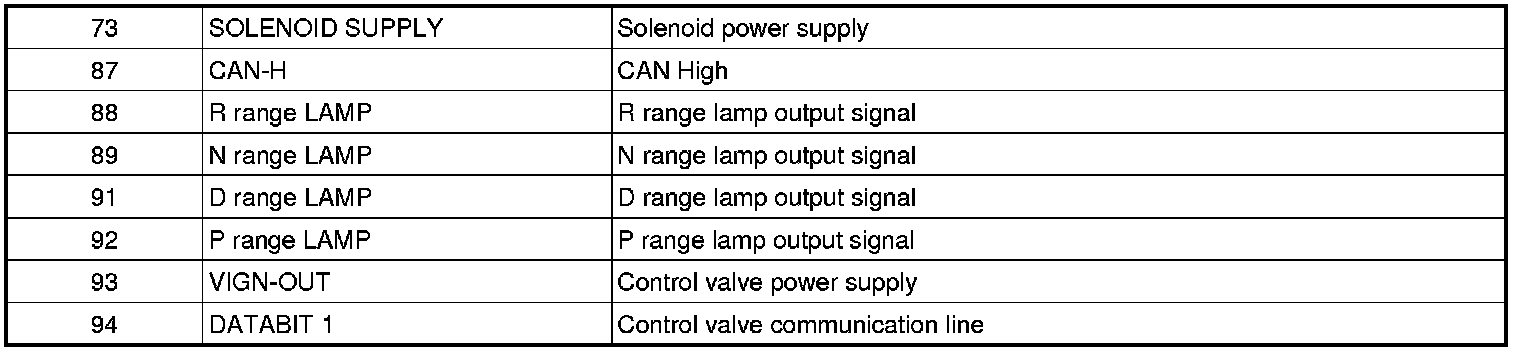

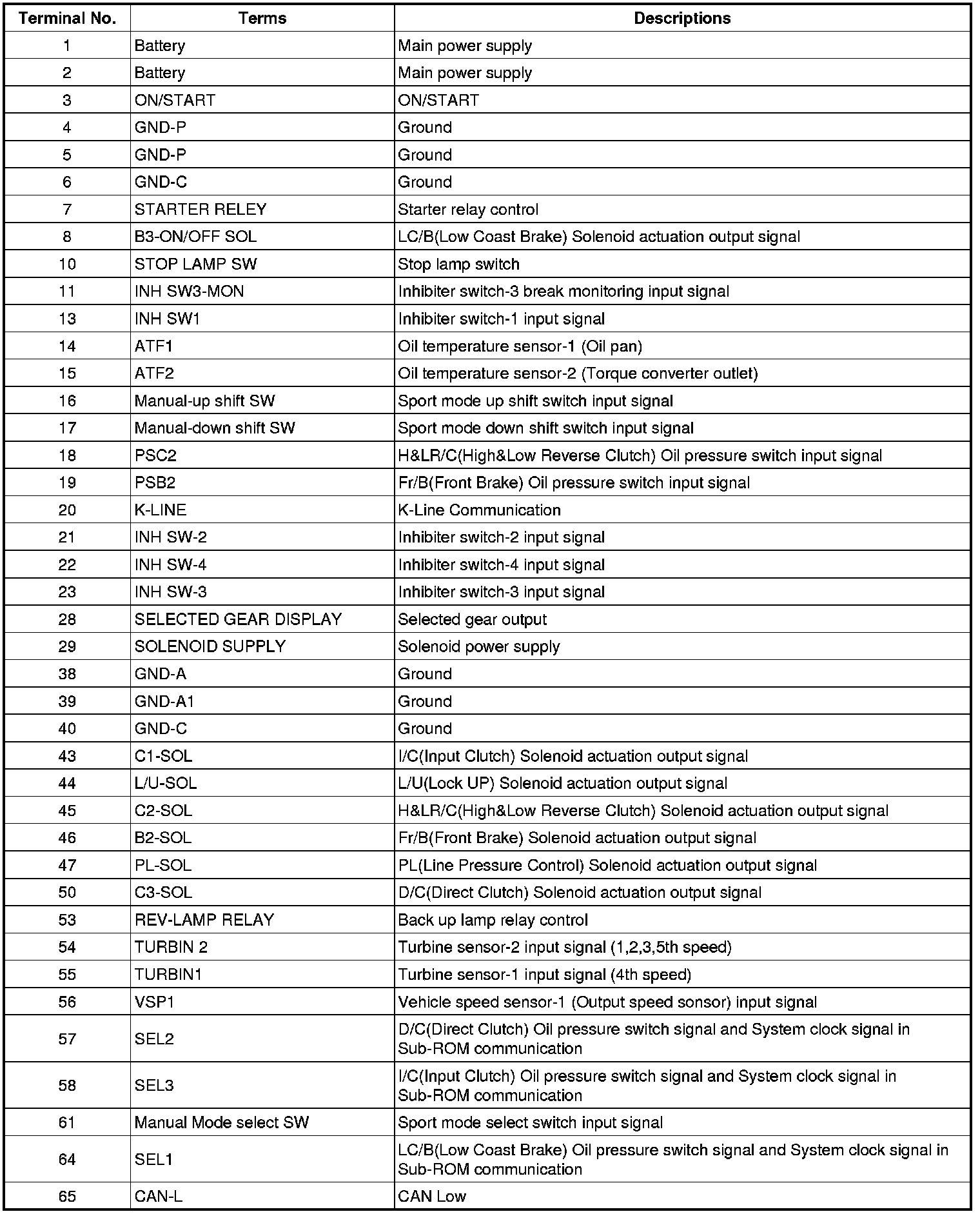

Function of TCU terminals
