Connector Views
>>
Keyless Starting System
>>
Keyless Start Control Module
>>
Smart key unit
Smart key unit

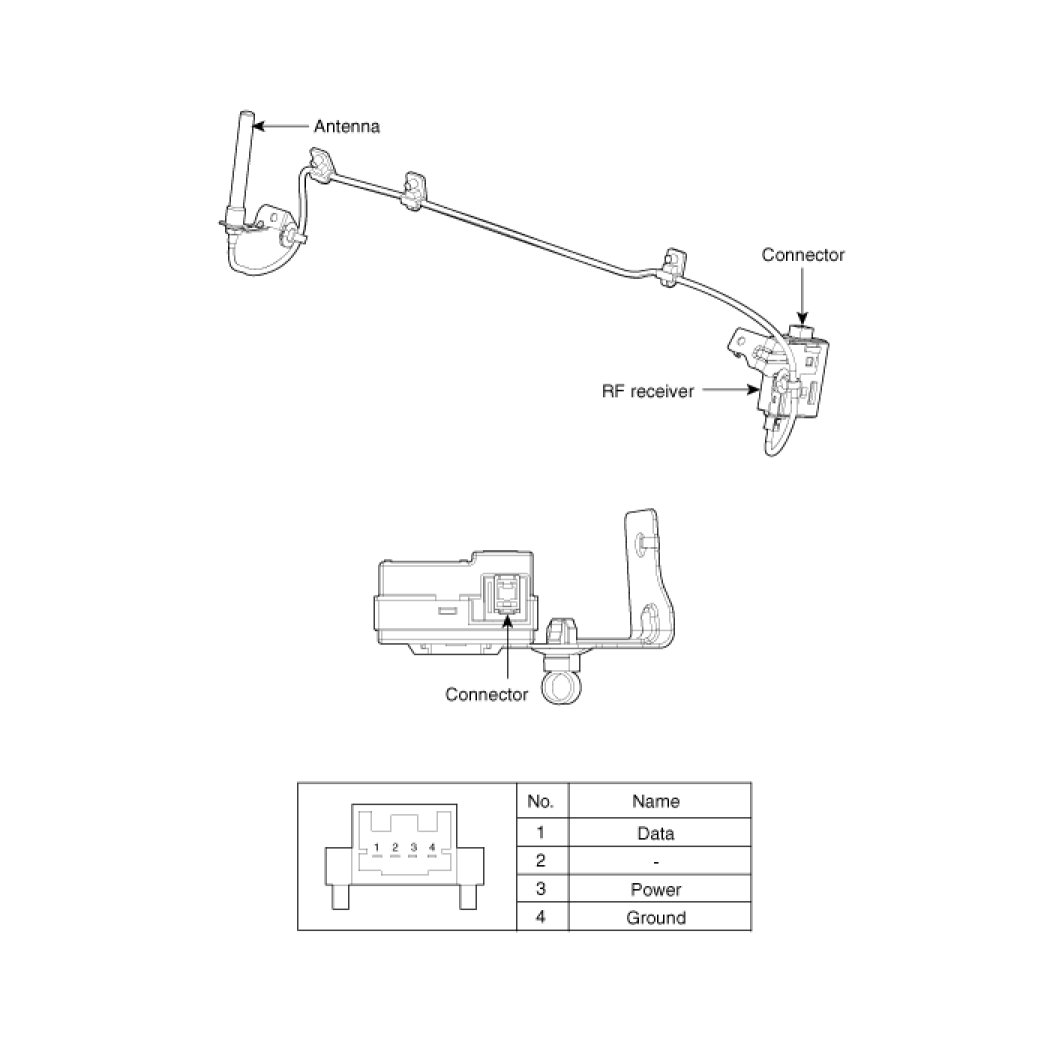

Component (1)

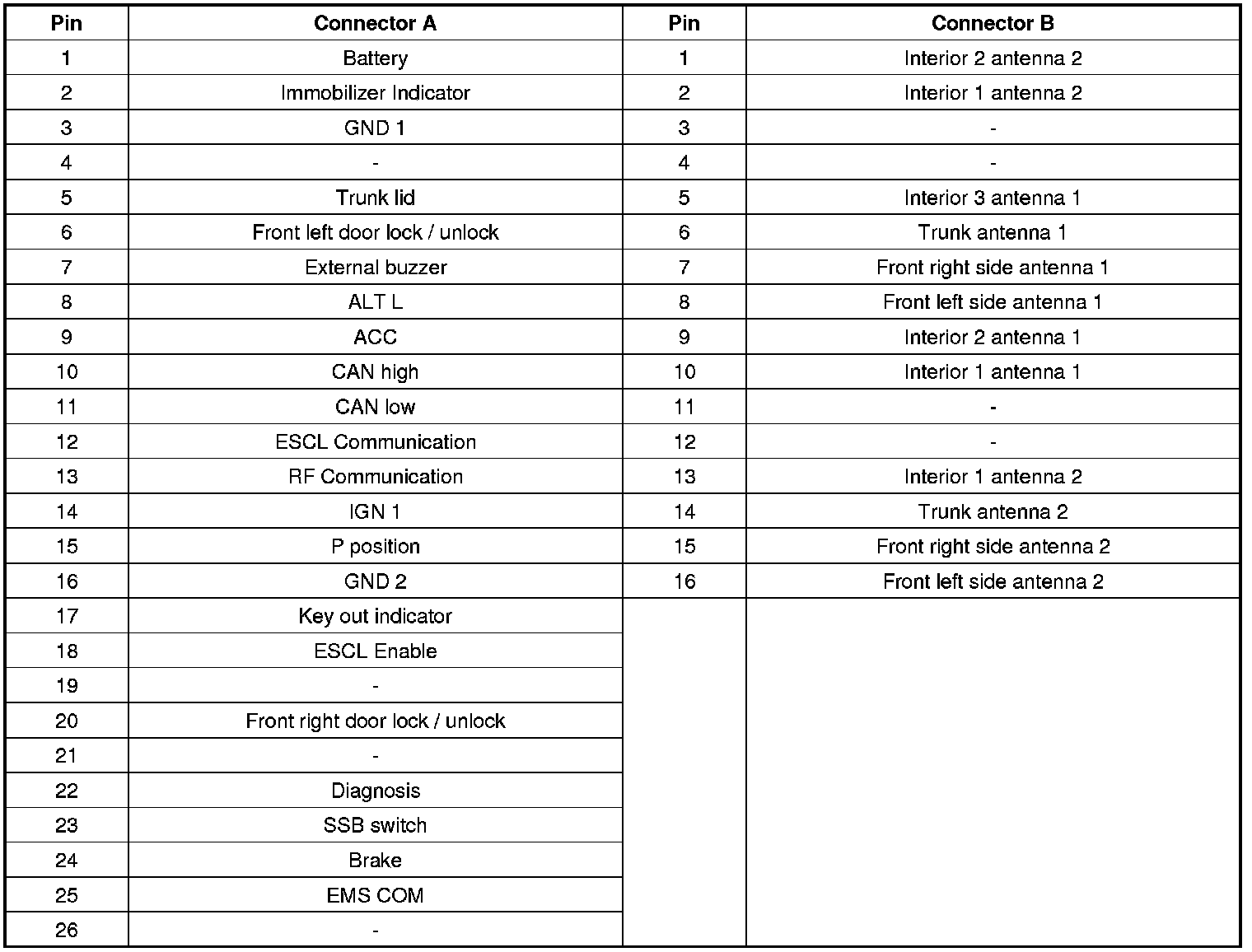

Connector Pin Information

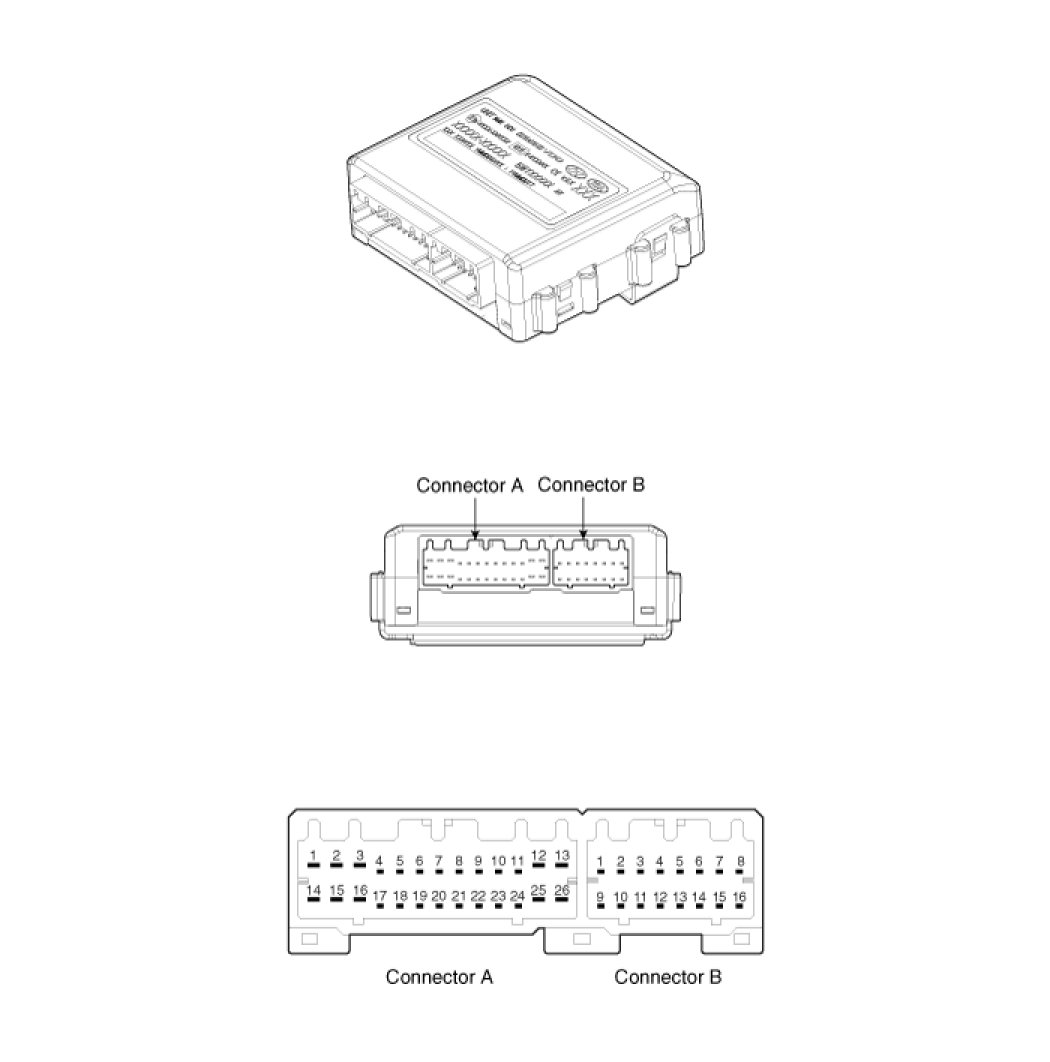

Component (2)
