Repair Procedures

Removal

1. Remove the wheel & tire.

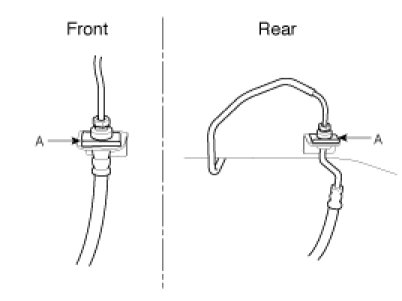

2. Remove the brake hose clip (A).

Front




3. Disconnect the brake tube by loosening the tube flare nut.

Tightening torque :
12.7 - 16.7N.m (1.3 - 1.7kgf.m, 9.4 - 12.3lb-ft)

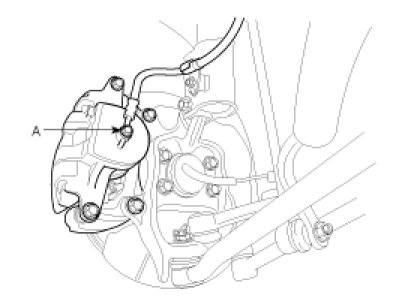

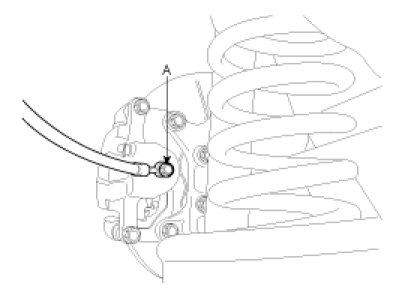

4. Disconnect the brake hose from the brake caliper by loosening the bolt.

Tightening torque :
24.5 - 29.4N.m (2.5 - 3.0kgf.m, 18.1 - 21.7lb-ft)

Front





Rear






Installation

1. Installation is the reverse of removal.

CAUTION:

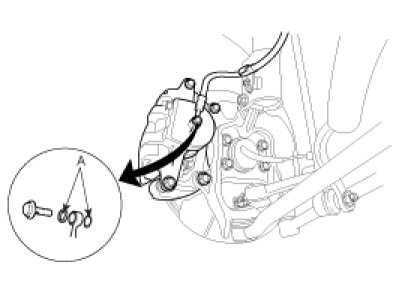

Use a new washer (A) whenever installing.




2. After installation, bleed the brake system.
3. Check the spilled brake oil.
