Rear Brake Pads (General caliper type)

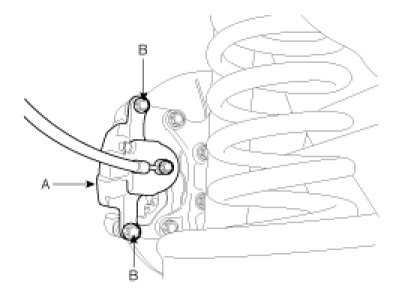

1. Loosen the guide rod bolt (B) and remove the caliper body (A).

Tightening torque :
21.6 - 31.4N.m (2.2 - 3.2kgf.m, 15.9 - 23.1lb-ft)

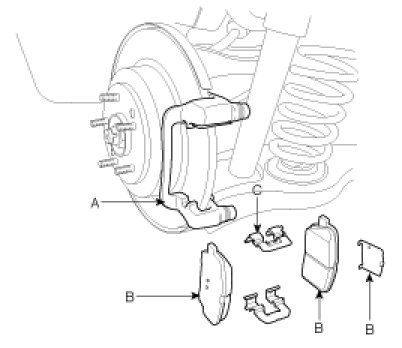

2. Replace pad shim, pad retainers (C) and brake pads (B) in the caliper bracket (A).





Rear Brake Pads (Brembo caliper type)

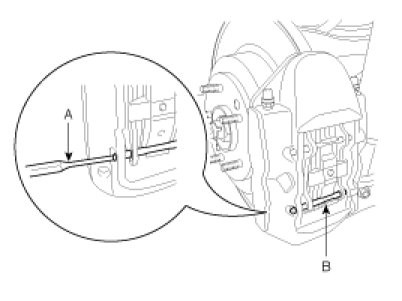

1. Remove the guide pin (B) of the lower part with the pin punch (A).

Tightening torque :
21.6 - 31.4N.m (2.2 - 3.2kgf.m, 15.9 - 23.1lb-ft)

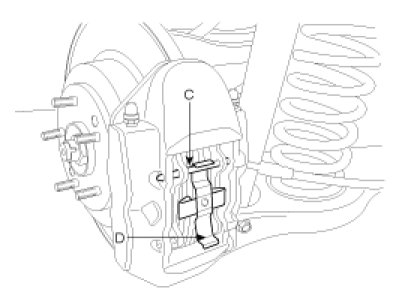

2. Remove the guide pin (C) of the upper part and the retraction spring (D).

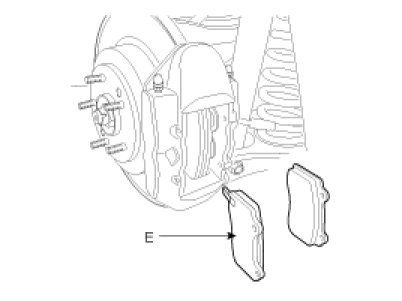

3. Replace brake pads (E) at the caliper body.
