Repair Procedures





Replacement

Rear Seat Assembly Replacement

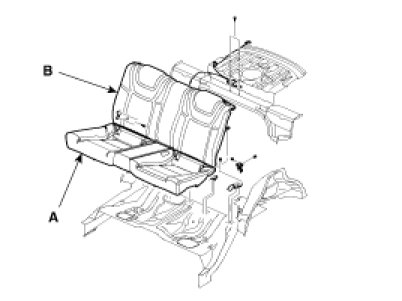

1. After loosening the mounting bolts, remove the seat assembly (A), (B).




2. Installation is the reverse of removal.
