Seat Latch: Service and Repair

Replacement

Rear Seat Latch Replacement
1. Remove the rear seat.

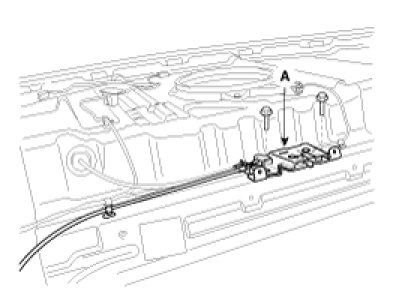

2. After loosening the mounting bolts, remove the latch assembly (A).

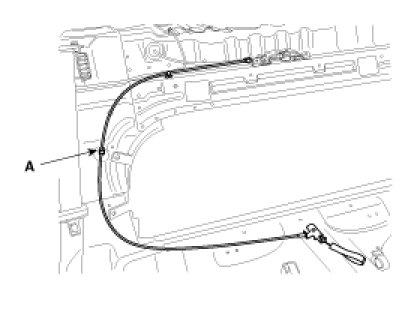

3. Remove the cable (A).

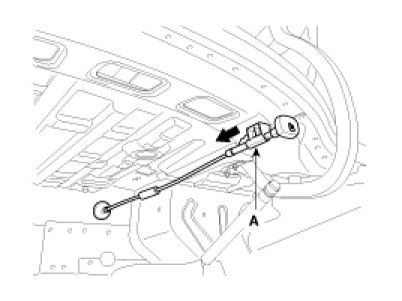

4. Remove the handle (A).




5. Installation is the reverse of removal.
