Seat Cushion: Service and Repair

Replacement

Seat Cushion Cover Replacement
1. Remove front seat assembly.
2. Remove the recliner cover.

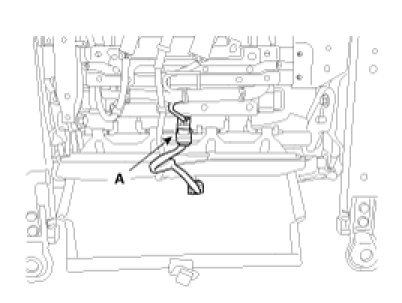

3. Disconnect the connector (A).

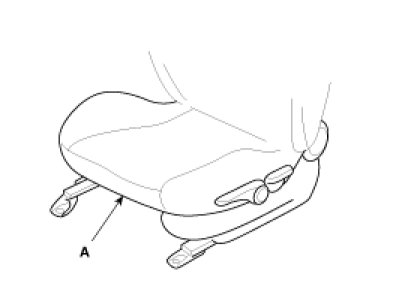

4. After disconnect the protector, remove the seat cushion (A).

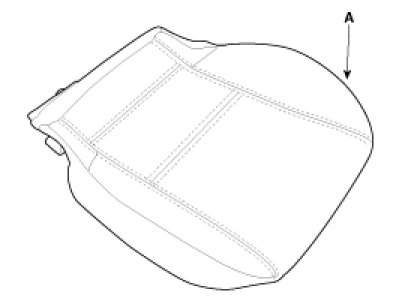

5. Remove the seat cushion cover (A).




6. Installation is the reverse of removal.

NOTE:
Be sure to perform PODS re-zero with Hi-Scan (pro) after replacing parts (passenger's)
