Seat Cover: Service and Repair

Replacement

Recliner Cover Replacement

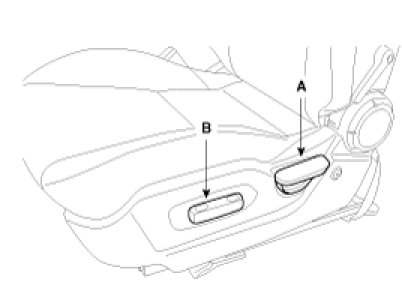

1. Remove the recliner lever (A).
2. Remove the height lever (B).

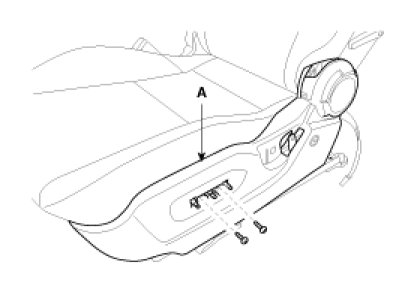

3. After loosening the mounting screws, then remove the recliner cover (A).
4. Disconnect the connector.




5. Installation is the reverse of removal.

NOTE:
Be sure to perform PODS re-zero with Hi-Scan (pro) after replacing parts (passenger's)
