Seat Back: Service and Repair

Replacement

Seat Back Cover Replacement
1. Remove front seat assembly.
2. Remove the headrest.
3. Remove the lumber support lever.

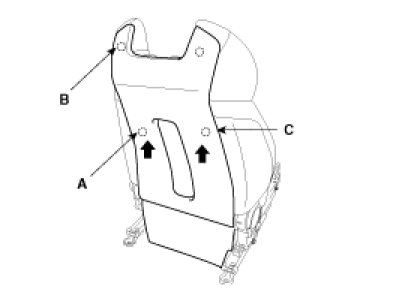

4. After disconnecting the clips (A) and (B), remove the seat back panel (C).

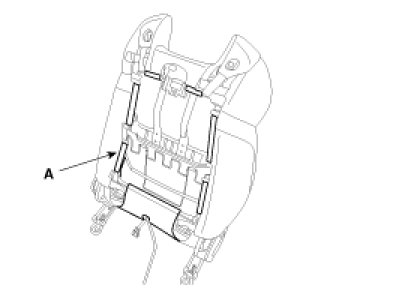

5. Disconnect the protector (A) from the back frame.

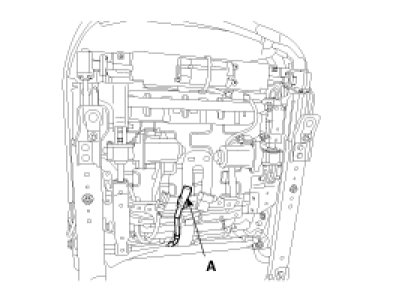

6. Disconnect the connector (A).

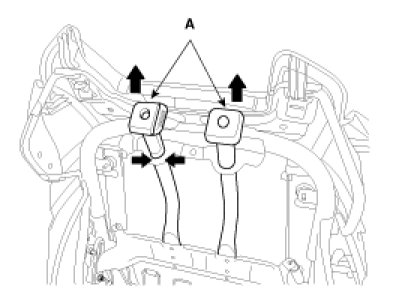

7. Pull out the headrest guides (A) while pinching the end of the guides, and remove them.




8. After removing the hogring clip(B) and remove the seat back cover (C).




9. Installation is the reverse of removal.

NOTE:

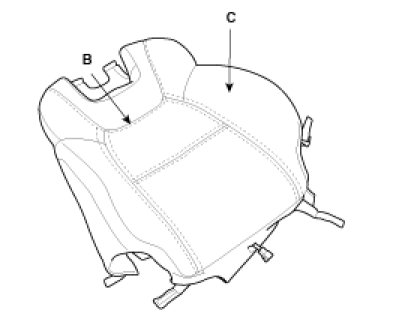

- To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hogring clips (A).
- Replace the hogring clips with new ones using special tool (C).





NOTE:
Be sure to perform PODS re-zero with Hi-Scan (pro) after replacing parts (passenger's)
