Seat Back Frame: Service and Repair

Replacement

Seat Frame Replacement
1. Remove the following items.
A. Recliner cover.
B. Seat back
C. Seat cushion

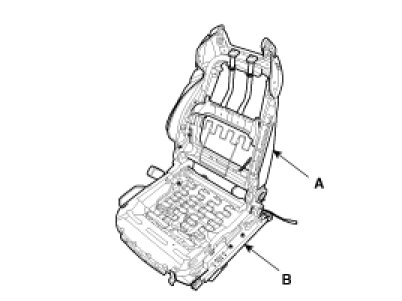

2. After loosening the mounting bolts, then disconnect the seat back frame (A) and seat cushion frame (B).

NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Be fore service, be fully aware of precautions and service procedure relevant to air bag




3. Installation is the reverse of removal.

NOTE:
Be sure to perform PODS re-zero with Hi-Scan (pro) after replacing parts (passenger's)
