How to Initialize

How To Initialize
1. Check that the glass has been installed.
A. Finished height adjustment.
2. Push and hold the up switch.

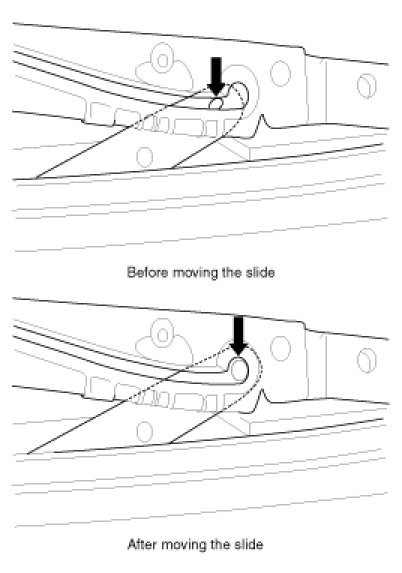

A. Until the slide moves forward 5.0 mm (after approx. 15 seconds), the release the switch.




3. After moving the slide 5mm forward, turn OFF the switch and push the UP switch (Keeping on pushing the switch with continuous operation)
A. If the motor initialization is successful, the sunroof should fully side open and close once.
4. When the sunroof is closed completely, turn OFF the UP switch initialize the motor completely.
