Electro Chromic Inside Rear View Mirror

Removal

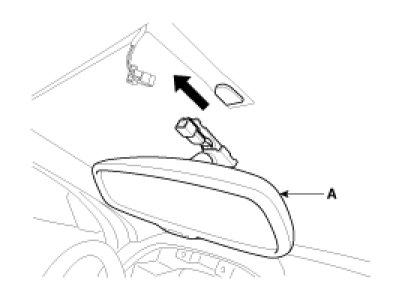

1. Remove the mirror wire cover(A).

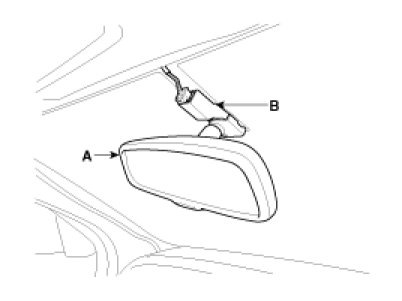

2. Disconnect the inside rear view mirror connector(B).
3. Loosen the mirror mounting screw(A).




4. Remove the inside rear view mirror(A) pulling it upside carefully.

NOTE:
Make sure the mounting bracket of the mirror not to be damaged.





Installation

1. Install the inside rear view mirror.
2. Connect the inside rear view mirror connector.
3. Install the mirror wire cover.
