Rear Pillar Trim Replacement

Replacement

Rear Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

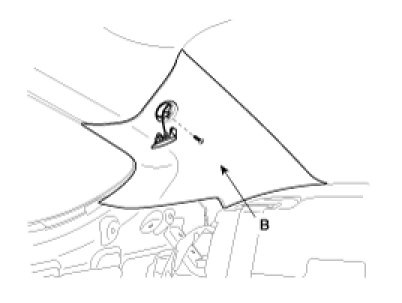

1. Remove the rear pillar trim (B).




2. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
