Glove Compartment: Service and Repair

Replacement

Glove Box Replacement

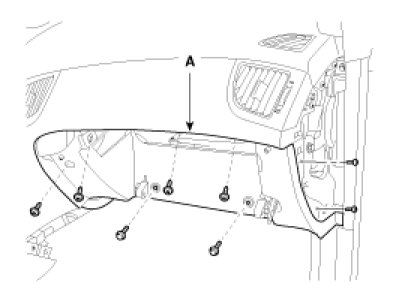

1. Remove the crash pad side cover (A).

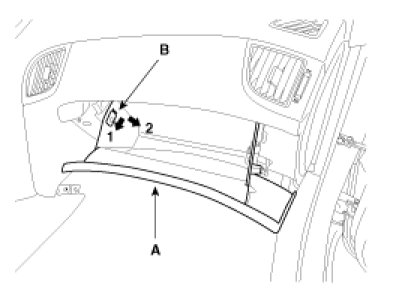

2. Disconnect the damper (B) from the glove box (A).

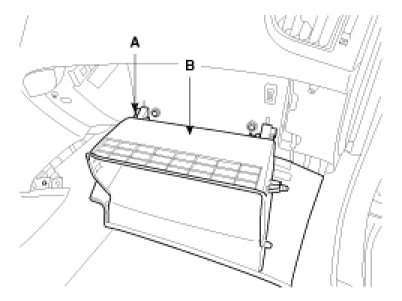

3. Remove the lift (A) from the glove box (B).

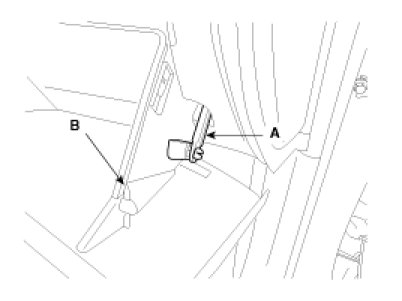

4. Disconnect the pine (A), then remove the glove box (B).

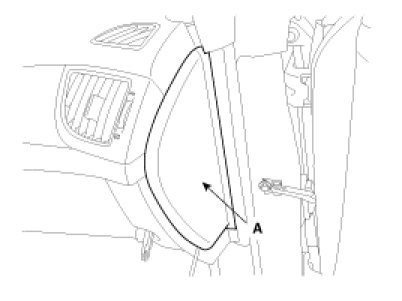

5. Remove the crash pad side cover.
6. After loosening the mounting screws, remove the glove box housing (A).




7. Installation is the reverse of removal.
