Center Fascia Panel Replacement

Replacement

Center Fascia Panel Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the console upper cover (A).

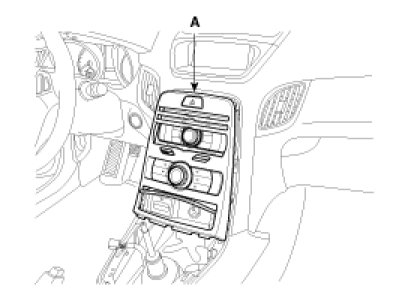

2. Remove the center fascia panel (A).




3. Disconnect the connector.
4. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
