Door Module Assembly Replacement

Replacements

Door Module Assembly Replacement
1. Remove the following parts.
A. Door trim
B. Window glass
C. Outside handle

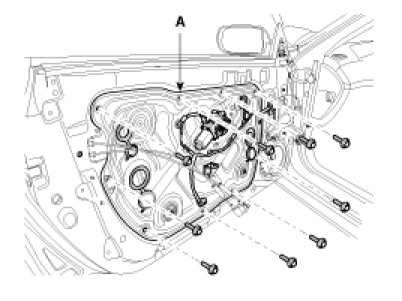

2. Loosen the door module mounting bolts, remove the door module (A).




3. Disconnect the connector.

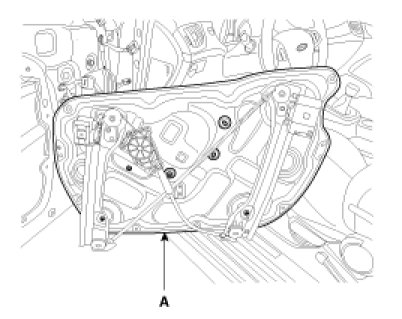

4. Disconnect the door module wiring harness, remove the module assembly (A).




5. Installation is the reverse of removal.

NOTE:
- The area of whole parts should be applied with sufficient grease.
- Make sure the connector are connected properly and each rod is connected securely.
- Make sure door lock operates and door open/close properly.
