Front Door

Replacements

Speaker Replacement
1. Remove the door trim.

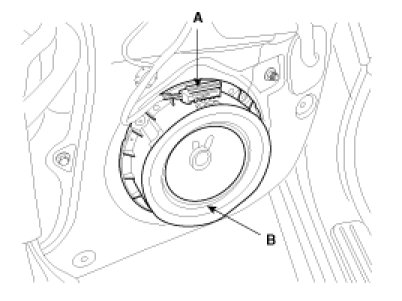

2. Drill out the rivets to remove the speaker (B) from the door inner panel.
3. Disconnect the speaker connector (A).




4. Installation is the reverse of removal.

NOTE:
- Use sheet metal screws to secure the speaker.
