Audio

Removal

Front Speaker

1. Remove the front door trim panel.

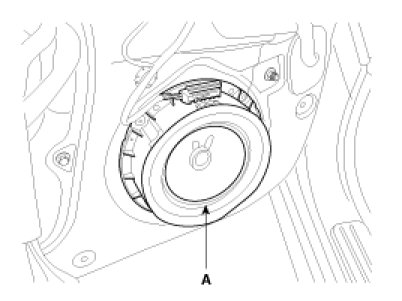

2. Remove the front speaker (A) after loosening 4 rivets.





Rear Speaker
1. Remove the rear seat.

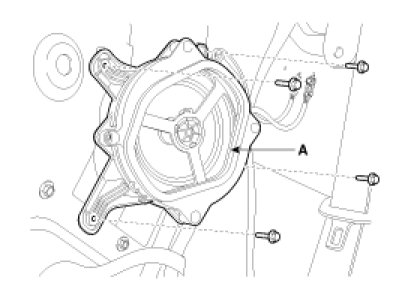

2. Remove the rear side trim and then remove the rear speaker (A) after removing 4 bolts.





Crash pad center speaker

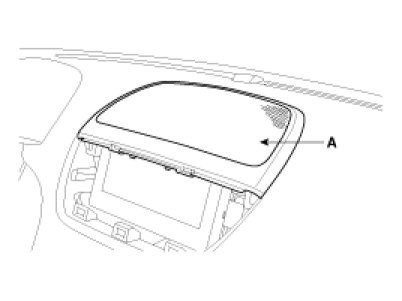

1. Remove the center fascia upper panel(A).




2. Remove the speaker grille(A).

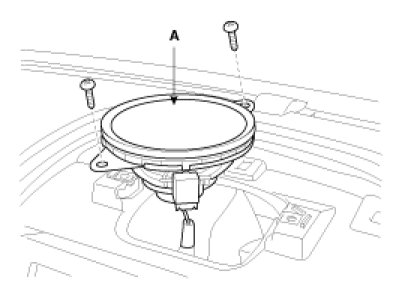

3. Remove the center speaker(A) after loosening the mounting screws.





Tweeter Speaker
1. Remove the front door trim(A).

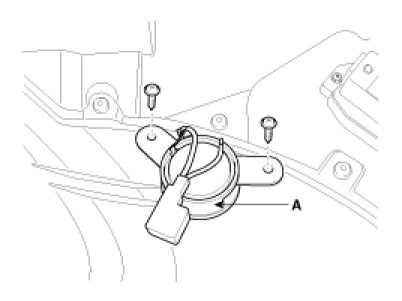

2. Remove the tweeter speaker(A) from the front door trim after disconnecting the connector.





Woofer Speaker
1. Fold the rear seat forward.

2. Remove the rear package tray.

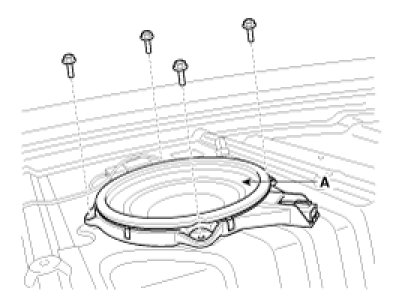

3. Remove the woofer speaker (A) after removing 4 bolts.





External Amp
1. Remove the rear seat.

2. Remove the rear right side trim.

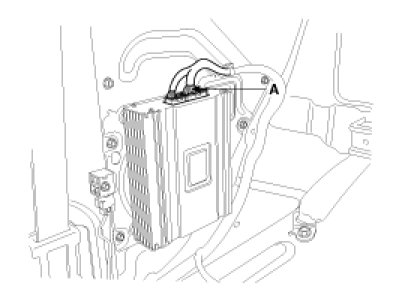

3. Remove the external amplifier connector(A) from the rear right quarter panel.

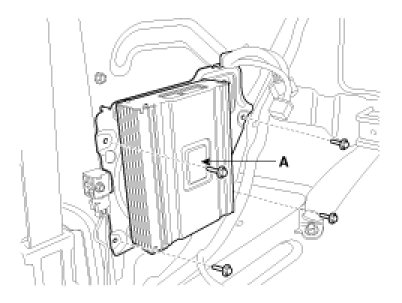

4. Remove the external amplifier(A) after loosening the mounting bolts.






Installation

Front Speaker
1. Install the front speaker.
2. Install the front door trim.

Rear Speaker
1. Install the rear speaker.
2. Install the rear side trim.
3. Install the rear seat.

Crash pad center speaker
1. Install the center speaker.
2. Install the center speaker grille.
3. Install the center fascia upper panel.

Tweeter Speaker
1. Install the tweeter speaker after connecting the tweeter speaker connector.
2. Install the front door trim.

Woofer Speaker
1. Install the woofer speaker after connecting the connector.
2. Install the rear package tray and rear seat assembly.

External Amp
1. Install the external amplifier after connecting the connector.
2. Install the rear right side trim.
