Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the console upper cover(A).




3. Remove the crash pad center fascia lower panel(A).

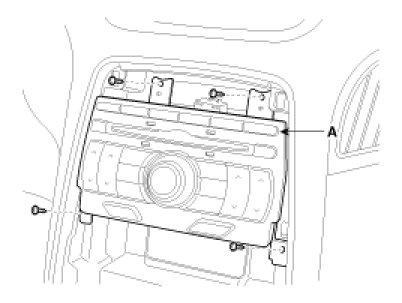

4. Remove the mounting screws then remove the audio head unit(A).

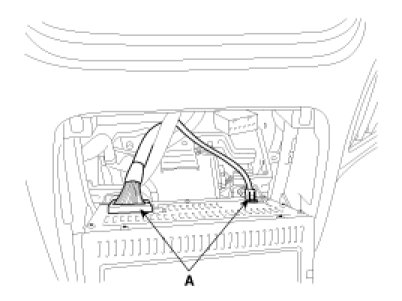

5. Remove the connectors and cable(A).






Installation

1. Connect the audio unit connectors and cables.
2. Install the audio unit.
3. Install the crash pad center fascia lower panel.
4. Install the console upper cover.
5. Check the audio system.

NOTE:
Make sure the audio head unit connectors are plugged in properly and the antenna cable is connected properly.
