Overhaul

Disassembly

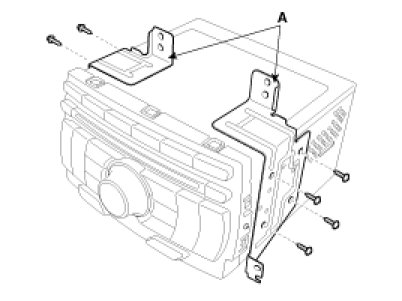

1. Remove the brackets(A) after loosening the mounting screws.

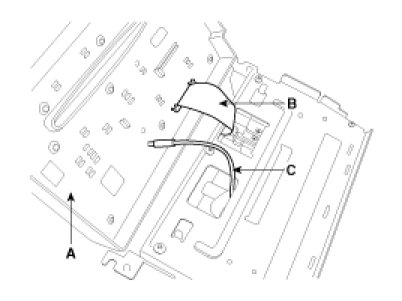

2. Disassemble the front panel(A) then disconnect the connector(B) and cable jack(C) between the unit and front panel.

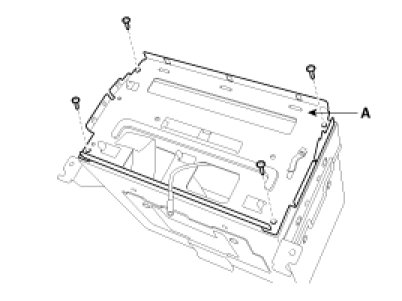

3. Disassemble the front cover(A) after loosening 4 screws.

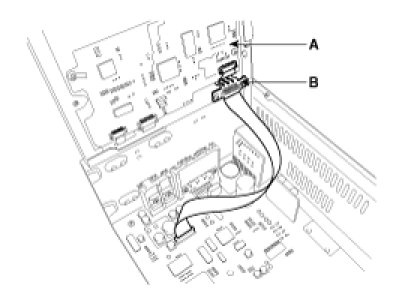

4. Disconnect the connector(B) between the unit and the deck(A) after loosening screws.




5. Disassemble the deck from the unit.

Reassembly

1. Reassemble the deck to the audio unit.
2. Reassemble the front cover.
3. Reassemble the front panel.
4. Reassemble the audio brackets.

NOTE:
Make sure the film connector and cable jack are plugged in properly.
