Repair Procedures

Removal

1. Disconnect the negative(-) battery terminal.

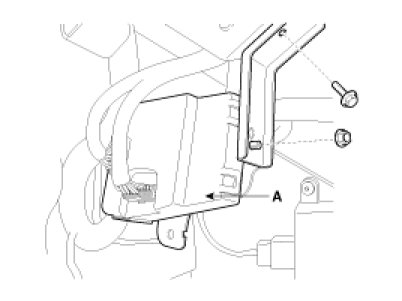

2. Remove the crash pad lower panel(A).





3. Disconnect the power distribution module(PDM) connector.
4. Remove the power distribution module(A) after loosening nut and bolt.






Installation

1. Install the power distribution module.
2. Install the crash pad lower panel.
