Component Inspection

Engine

Engine Control - P2067 Fuel Level Sensor 'B' Circuit Low - Component Inspection

Component Inspection

Check FLS resistance
1. IG "OFF" and Disconnect Fuel Sender & Fuel Pump Motor connector and Fuel Sub Sender connector.
2. Remove these senders from fuel tank and measure the resistance of Fuel sender while lifting up and down the fuel level float.

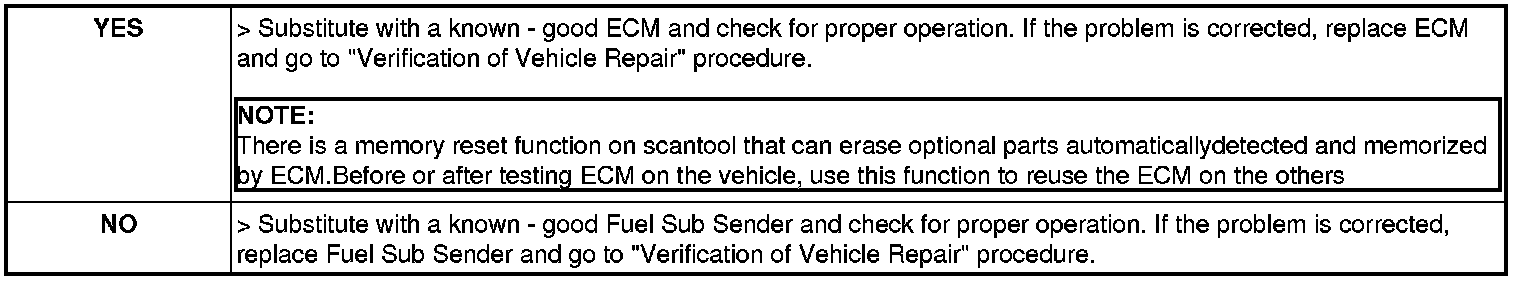

3. Does the resistance of FLS change as lifting up and down the fuel level float?
