Transmission

Automatic Transaxle - P0768 Shift Control Solenoid Valve 'D' Electrical (High/Low and Reverse Clutch Solenoid) - Component Inspection

Component Inspection

Check shift solenoid valve "H & LR/C"
1. Disconnect " ATM Solenoid Valve connector.
2. Ignition "OFF".
3. Measure continuity between ground terminal of H & LR/C Solenoid and chassis ground.

Specification : Approx. 3 - 9 Ohms

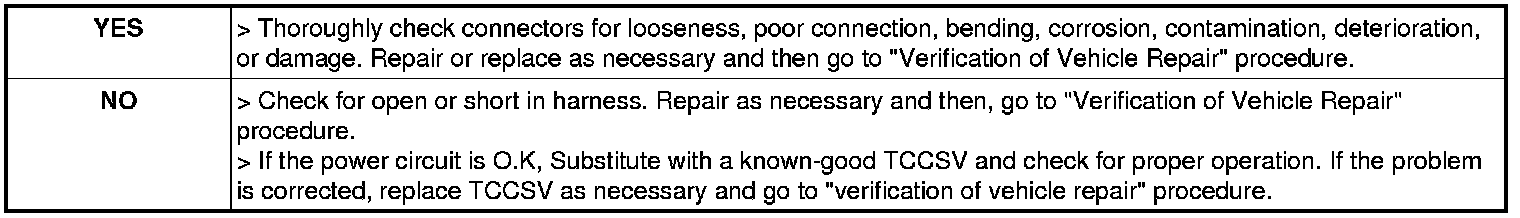

4. Is the measured resistance within specifications?
