Automatic Transaxle - P0763 Shift Control Solenoid Valve 'C' Electrical (Direct Clutch Solenoid) - Component Inspection

Component Inspection

Check shift solenoid valve "DC"
1. Disconnect " ATM Solenoid Valve connector.
2. Ignition "OFF".
3. Measure continuity between ground terminal of DC Solenoid and chassis ground.

Specification : Approx. 3 - 9 Ohms

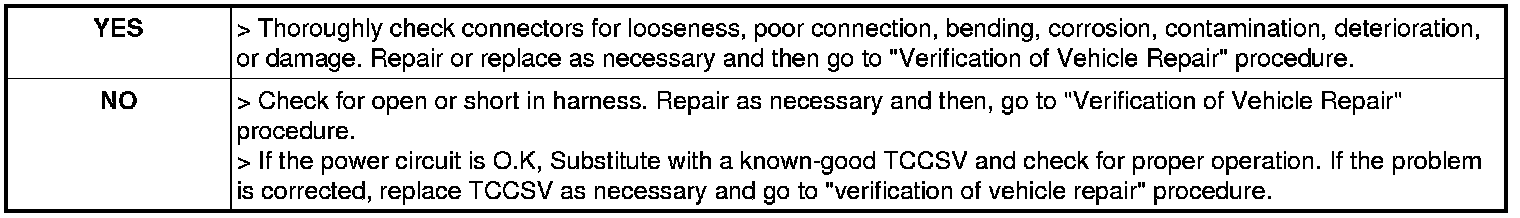

4. Is the measured resistance within specifications?
