Component Inspection

Transmission

Automatic Transaxle - P0753 Shift Control Solenoid Valve 'A' Electrical (Input Clutch Solenoid) - Component Inspection

Component Inspection

Check shift solenoid Valve "I/C"
1. Disconnect " ATM Solenoid Valve connector.
2. Ignition "OFF".
3. Measure continuity between ground terminal of IC Solenoid and chassis ground.

Specification : Approx. 3 - 9 Ohms

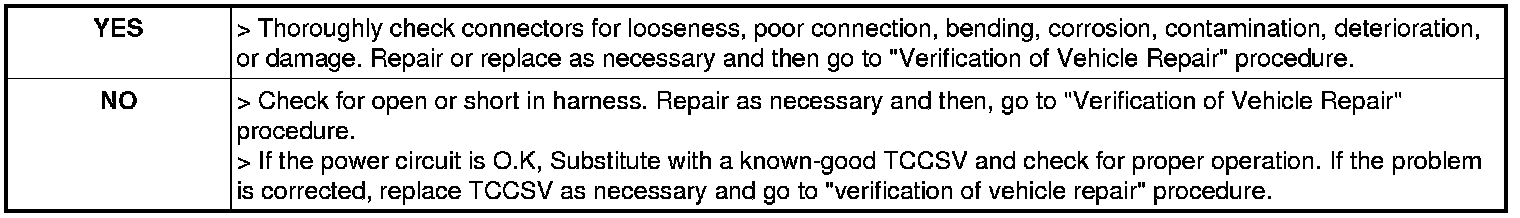

4. Is the measured resistance within specifications?
