Automatic Transaxle - P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input) - Component Inspection

Component Inspection

1. IG "OFF" & Engine "OFF".
2. Disconnect ATM control Unit (T01-1 & T01-3) connector.
3. Measure resistance between signal and ground terminal of range switch connector (Component Side)

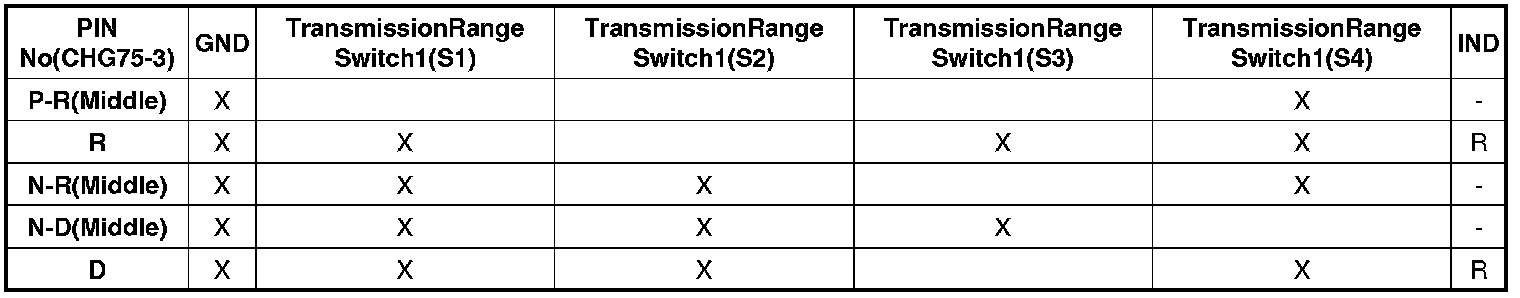

Specification : Refer to below table




Normal Condition (Any other conditions are treated as failure)





SWITCH IS ON (GND LEVER)
RANGE INDICATOR LAMP "OFF" AND MAINTAIN PREVIOUS RANGE

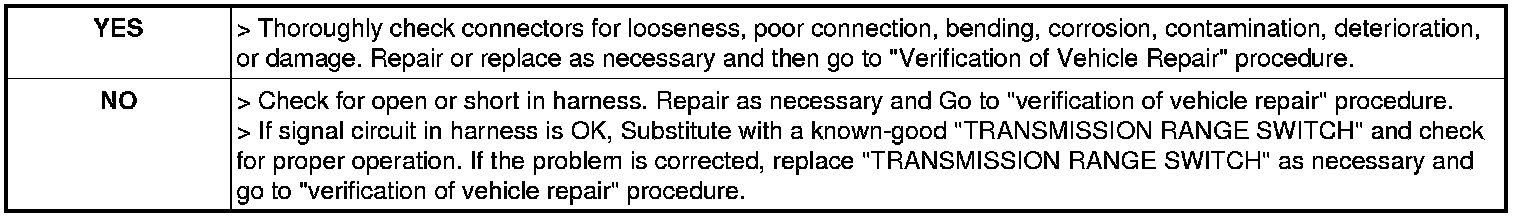

4. Is the measured resistance within specifications?
