Component Inspection





Engine

Engine Control - P0113 Intake Air Temperature Sensor 1 Circuit High Input - Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect IATS connector
3. Measure the resistance between signal terminal and ground terminal of the sensor connector (Component side).

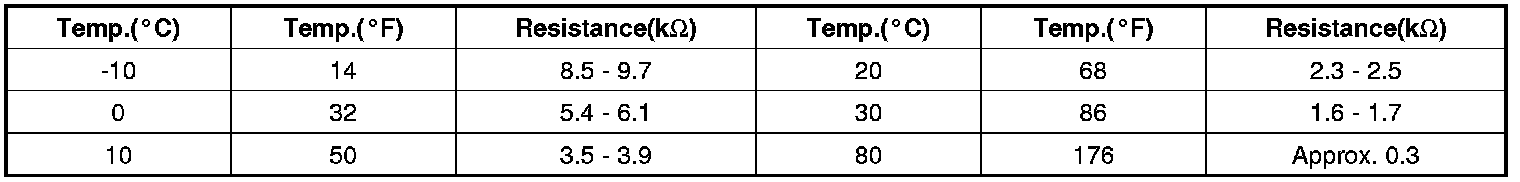

Specification:

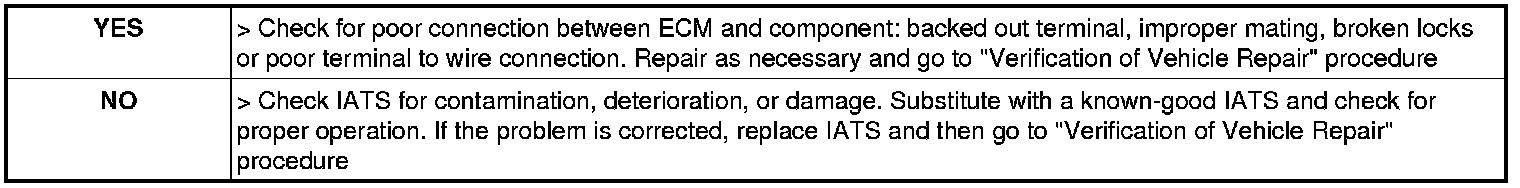

4. Is resistance within the specification?
