Home >> Hyundai >> 2010 >> Genesis Coupe L4-2.0L Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Engine Control System

Engine Control System

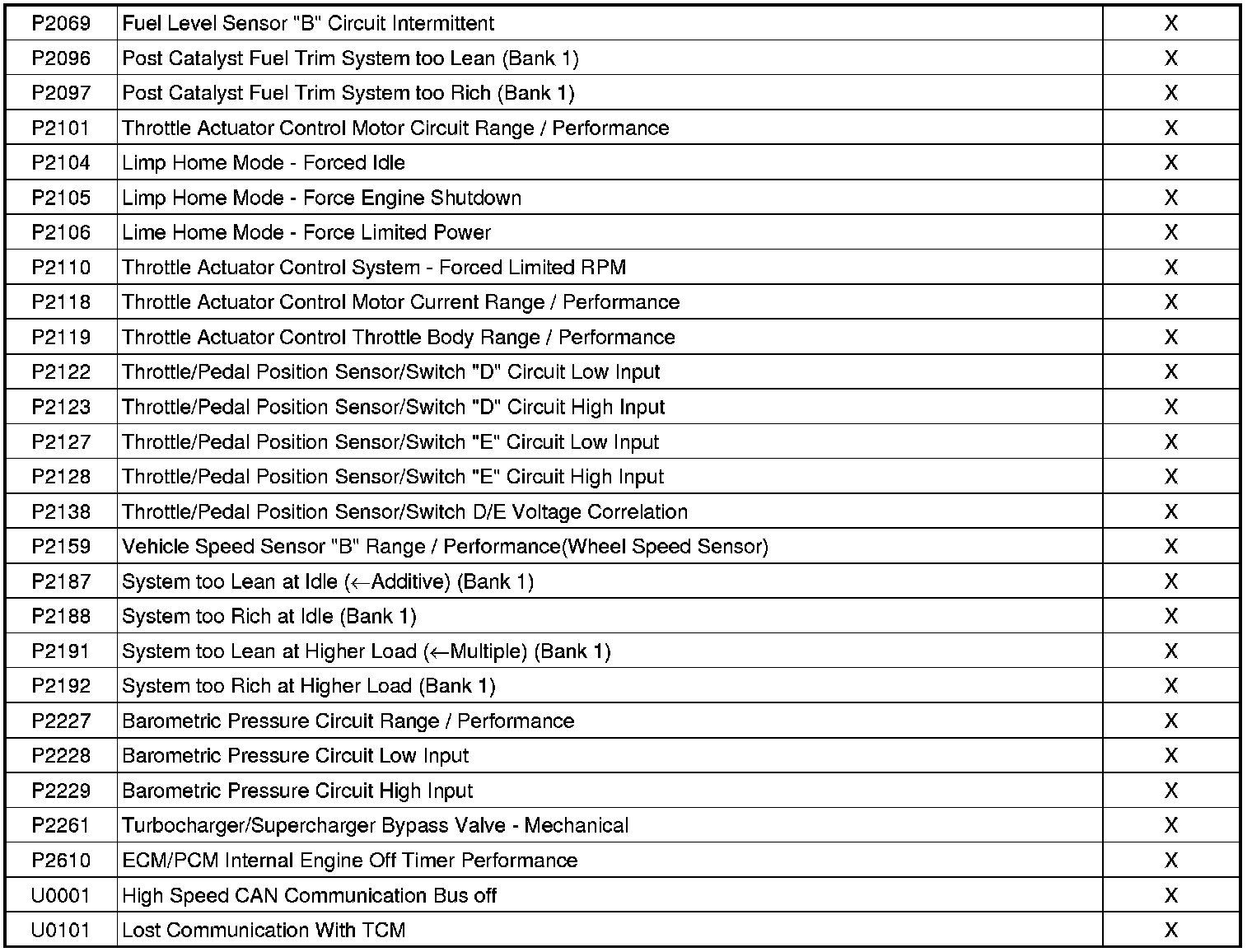

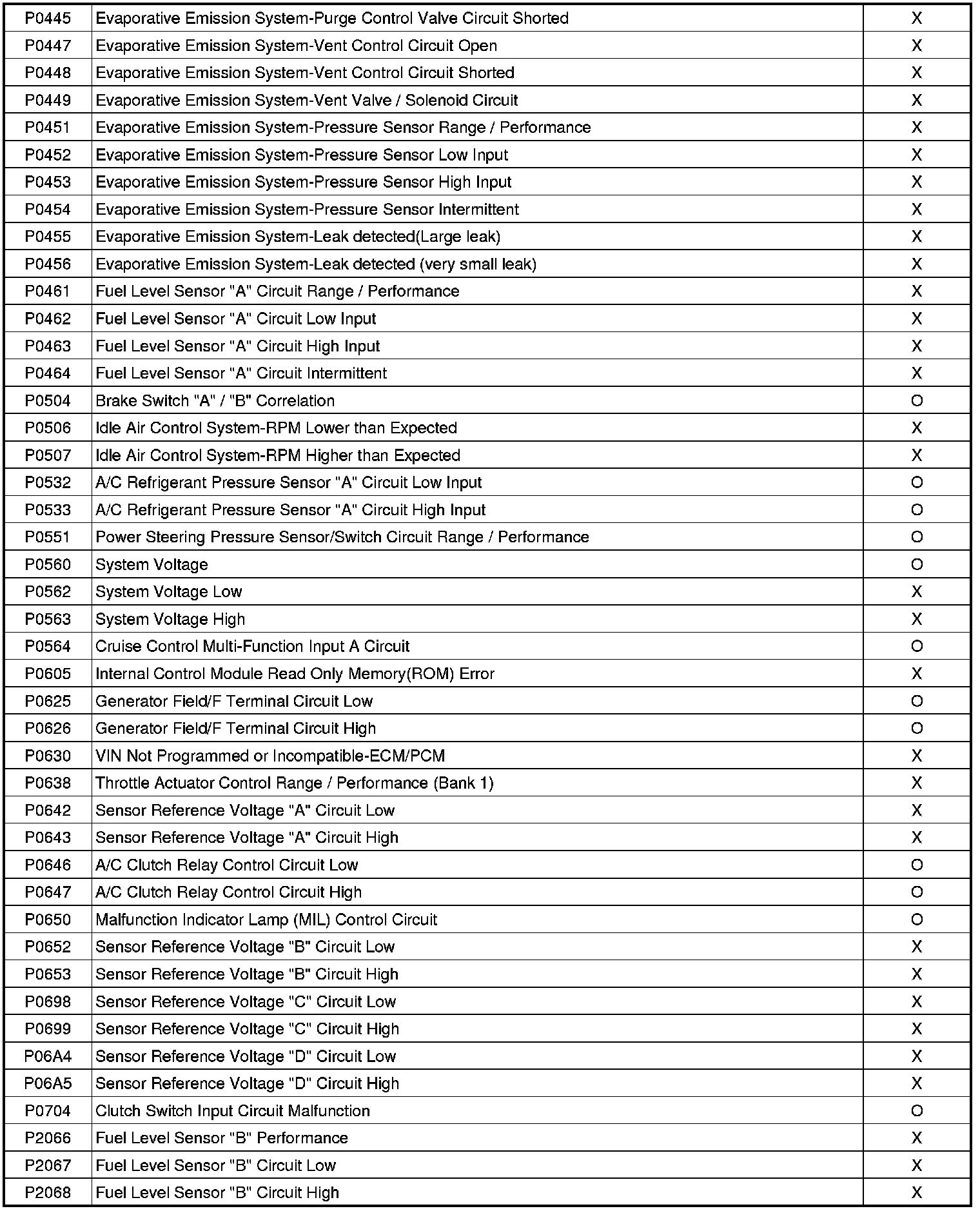

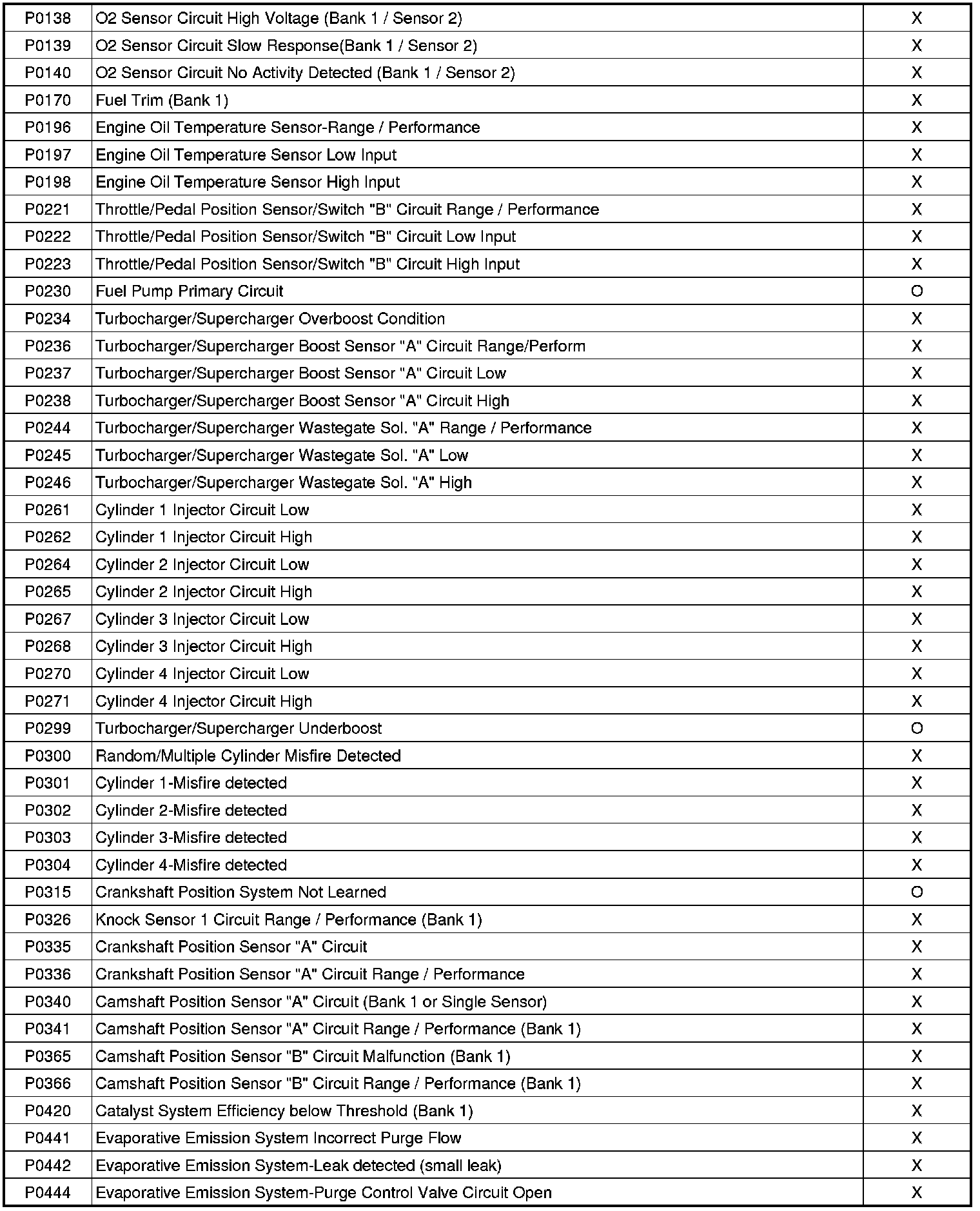

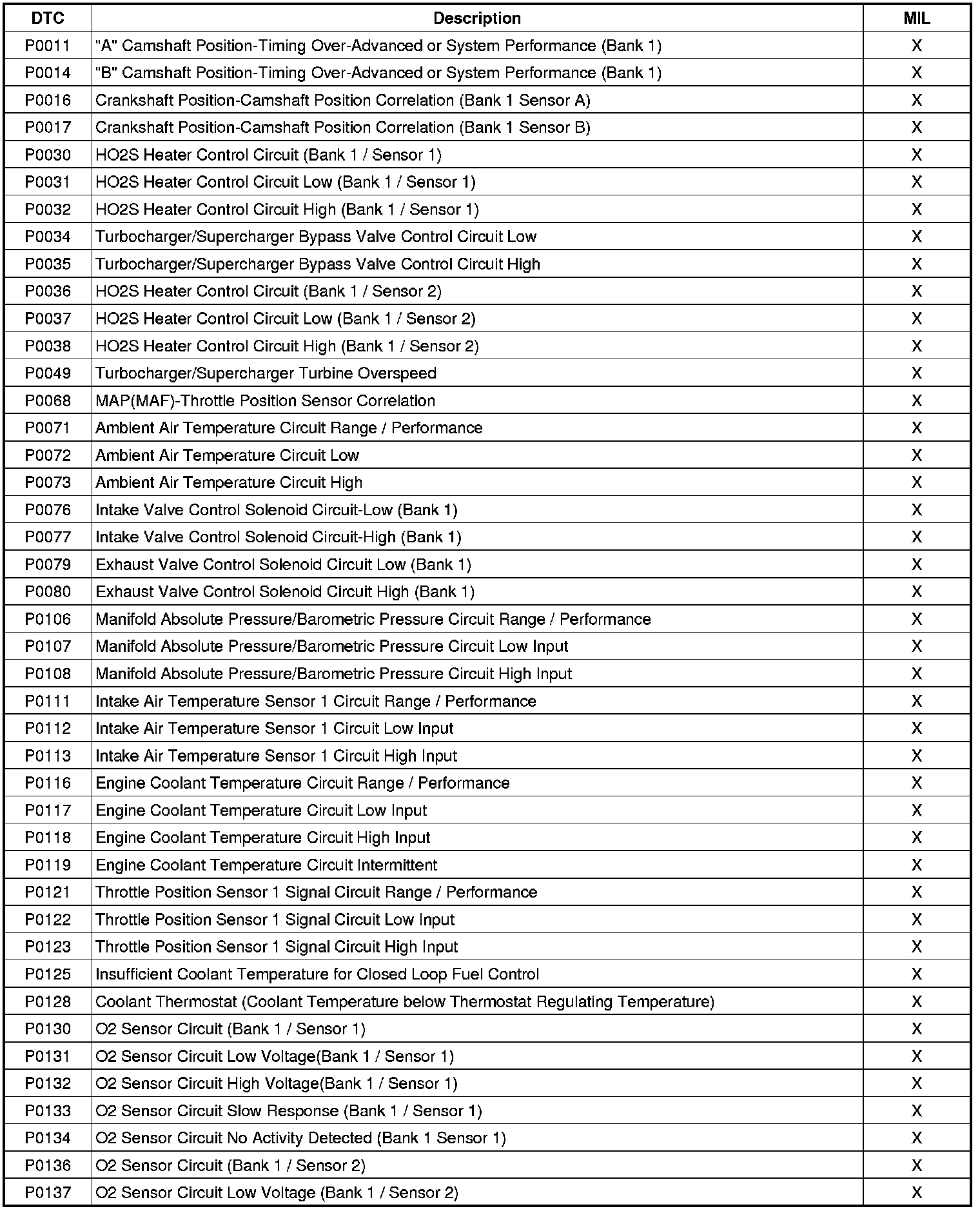

Inspection Chart For Diagnostic Trouble Codes (DTC)


















NOTE:
X: MIL ON & Memory
O: MIL OFF & Memory
