Home >> Hyundai >> 2010 >> Genesis Coupe L4-2.0L Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> ABS(Anti-Lock Brake System)

ABS(Anti-Lock Brake System)

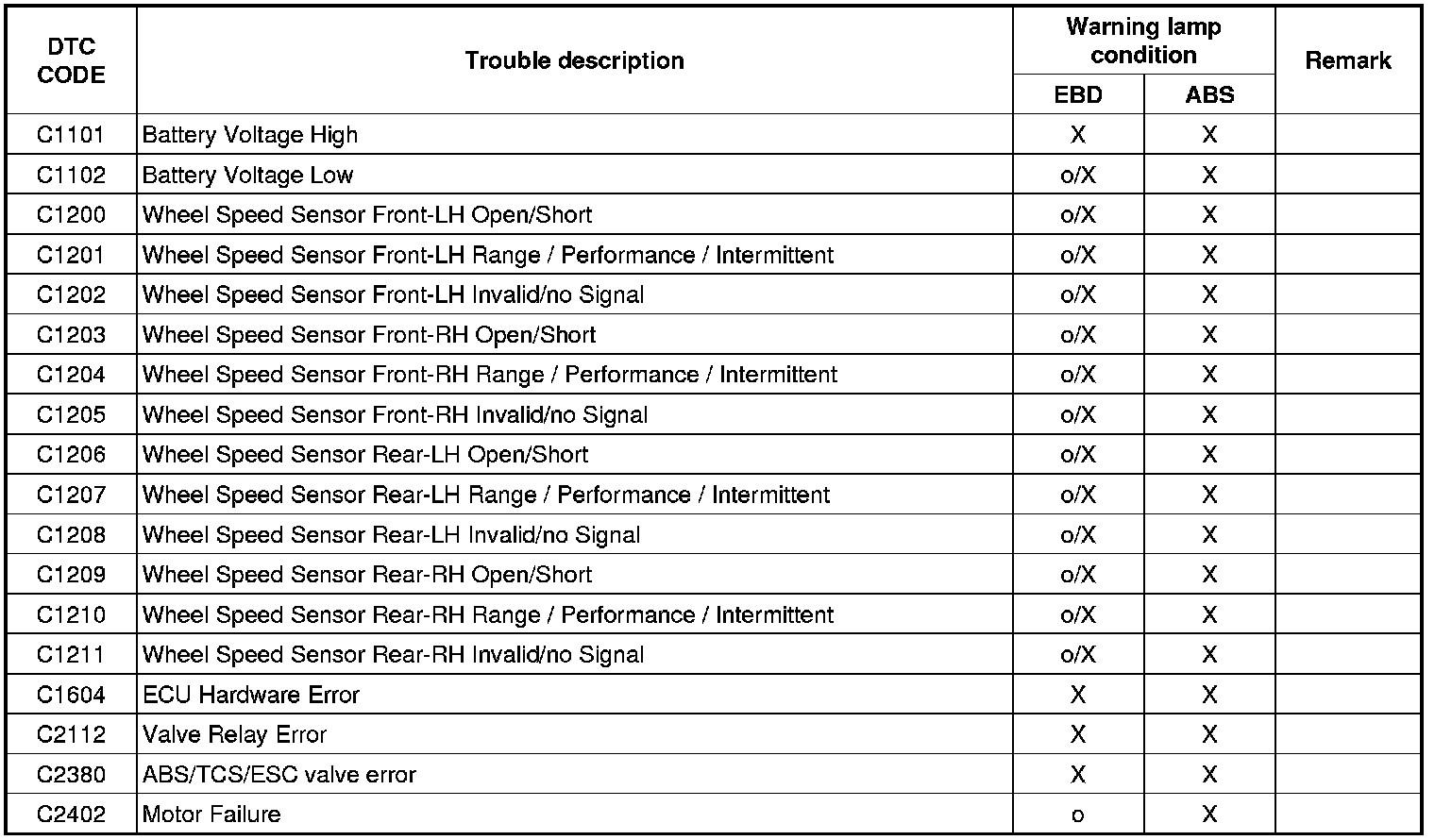

ABS Diagnostic Trouble Code(DTC) chart

X : MIL ON o : MIL OFF
