Automatic Headlamp Leveling System - C1620 First Setup Not Completed - Scantool Diagnostics

Scantool Diagnostics

1. Connect scantool with Diagnostic Connector.
2. Perform vehicle selection and Level Initialization with scantool as follows. And then, check "Actuator" parameter on scantool (It must be unloaded vehicle condition)

Specification : 80% ± 2%

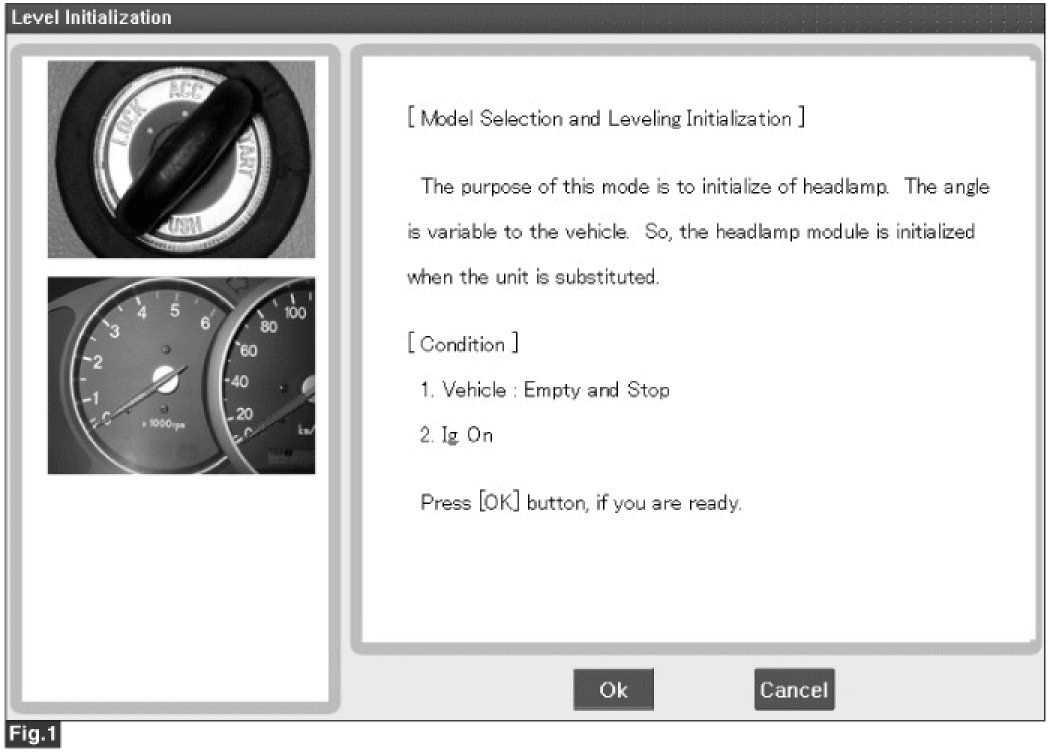

Fig.1) Vehicle Selection and Level Initialization

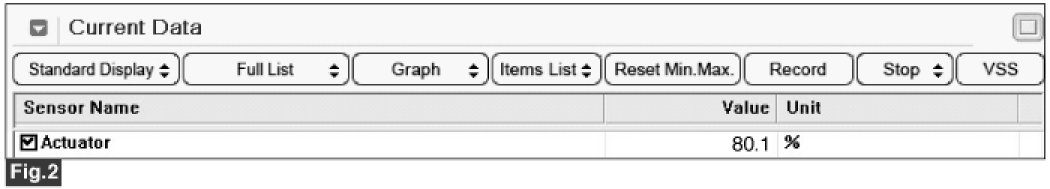

Fig.2) Engine ON

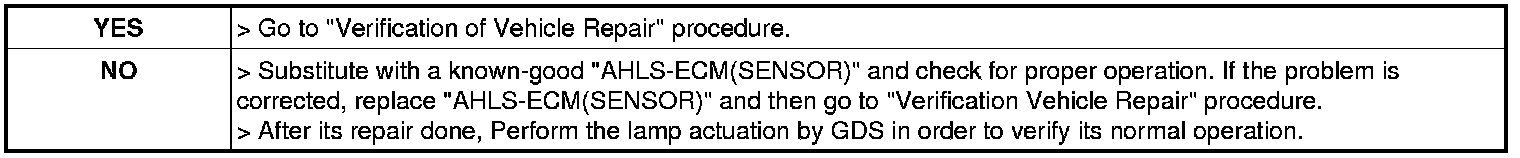

3. Are "Vehicle selection & Level Initialization" and current data normal?






CAUTION:
Perform Vehicle Selection and Level Initialization with scantool if AHLS ECM is replace. (Auto Levelling Sensor)
