Automatic Headlamp Leveling System - C1522 Head lamp Switch Fault - Scantool Diagnostics

Scantool Diagnostics

1. Connect scantool with Diagnostic Connector.
2. Engine "ON" and Turn on the auto head light system.

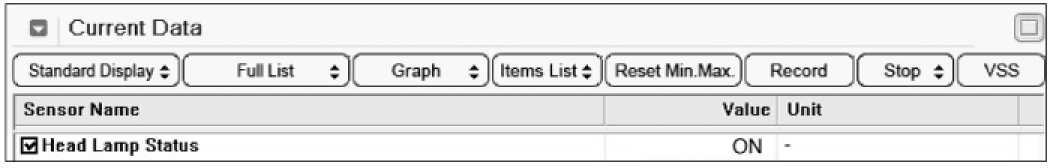

3. Check "HEAD LAMP status" parameter on Scantool.

Specification : When Head Lamp is ON : "ON"

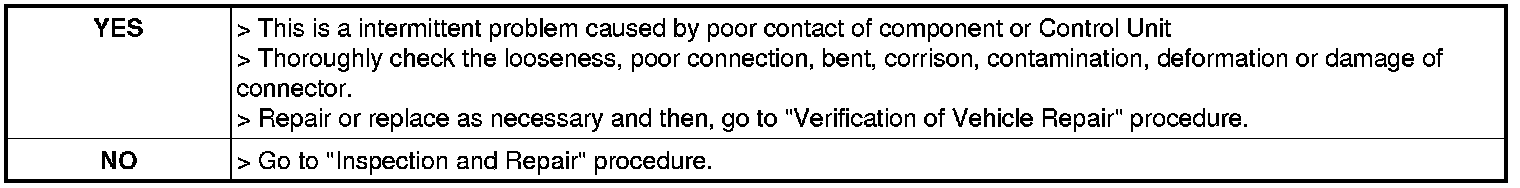

4. Is the current data normal?
