Scantool Diagnostics

Tire Pressure Monitoring

Tire Pressure Monitoring System - C1334 Left Rear Sensor Fault - Scantool Diagnostics

Monitor GDS Data

1. Park the vehicle on an even ground.
2. Connect GDS to Data Link Connector (DLC).
3. IG "ON"
4. Monitor the service data related to TPMS sensor on the GDS.

Specification : the parameters related to Sensor 3 is displayed normally.

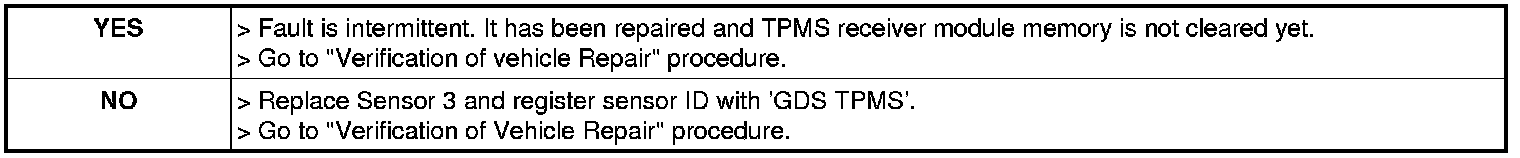

5. Are the parameters normal?
