Scantool Diagnostics

Tire Pressure Monitoring

Tire Pressure Monitoring System - C1324 Rear Left Sensor Over Temperature - Scantool Diagnostics

Monitor GDS Data

1. Park the vehicle on an even ground.
2. Connect GDS to Data Link Connector (DLC).
3. IG "ON"

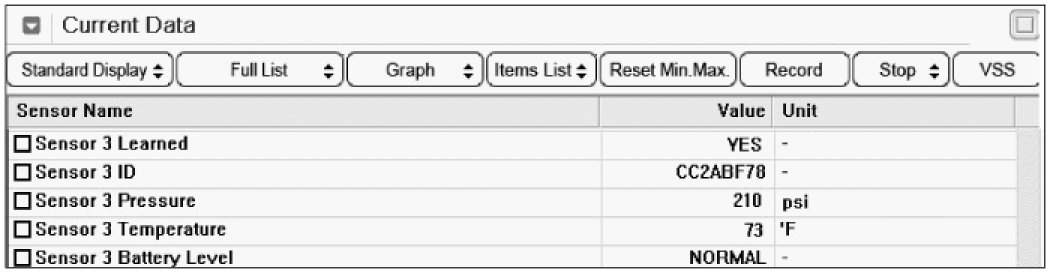

4. Monitor the service data related to sensor's temperature on the GDS.

Specification : Below 239°F (115°C)

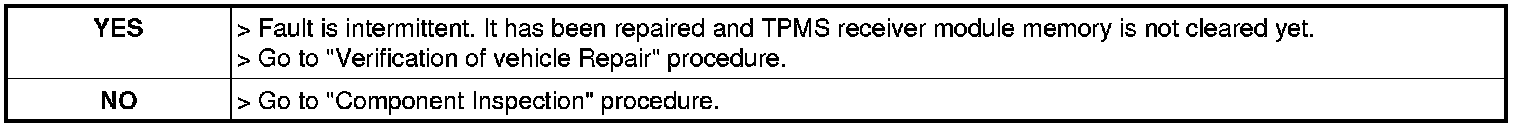

5. Is parameter within specifications?
