Power Distribution Module - B1987 Sub Micom Failed - Scantool Diagnostics

Monitor Scantool Data

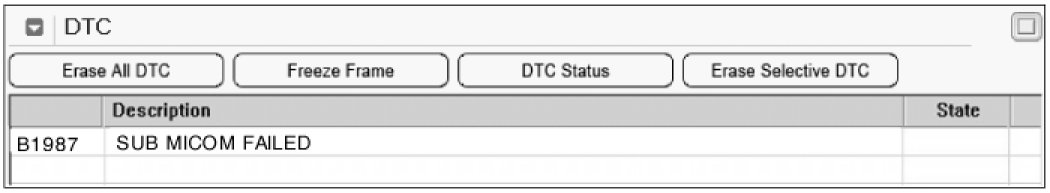

Check DTC
1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions"

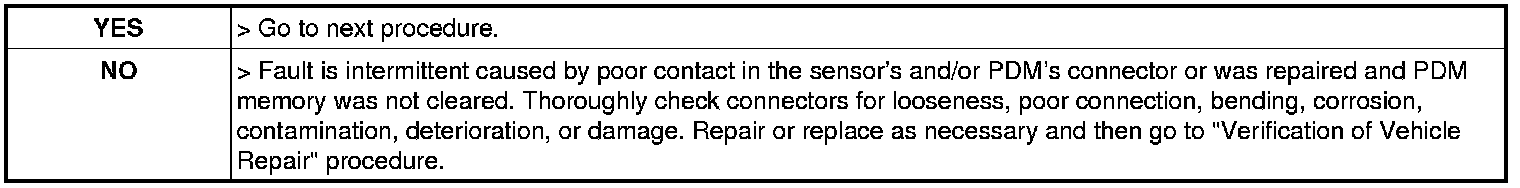

5. Is the same DTC occurred again?
