Component Inspection

Smart Key

Smart Key Unit - B1971 Parking Position Input Error - Component Inspection

Component Inspection

Check Parking Position Switch
1. IG KEY OFF.
2. Disconnect Parking Position switch connector.
3. Measure resistance between one and the other connector when parking position switch ON and OFF.

Specification : Measurement 1 : Infinite (Infinity), Measurement 2 : About below 1 Ohms

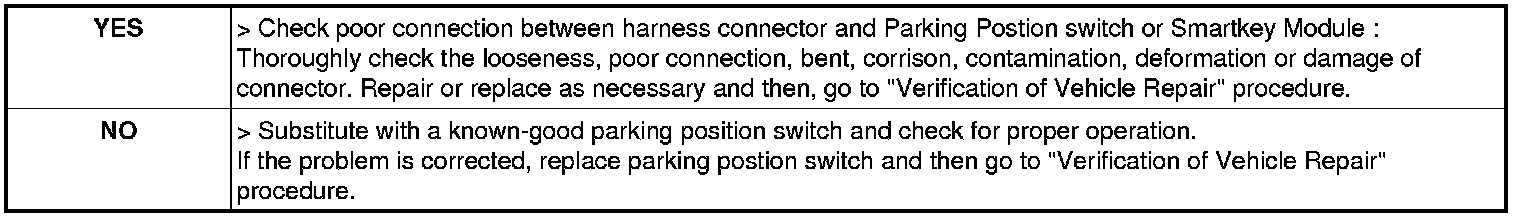

4. Is the measured resistance within specification?
