Power Distribution Module - B1603 CAN Bus Off - Scantool Diagnostics

Monitor Scantool Data

Check DTC
1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions"

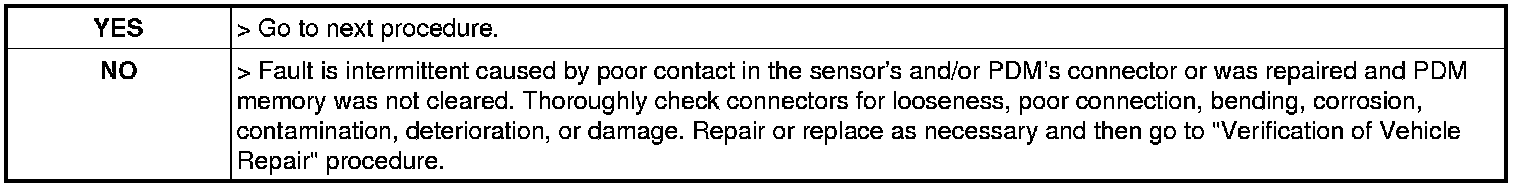

5. Is the same DTC occurred again?
