Scantool Diagnostics

Airbag

Event #2 - B1332 FIS (Front Impact Sensor) - Passenger Short to Battery - Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.

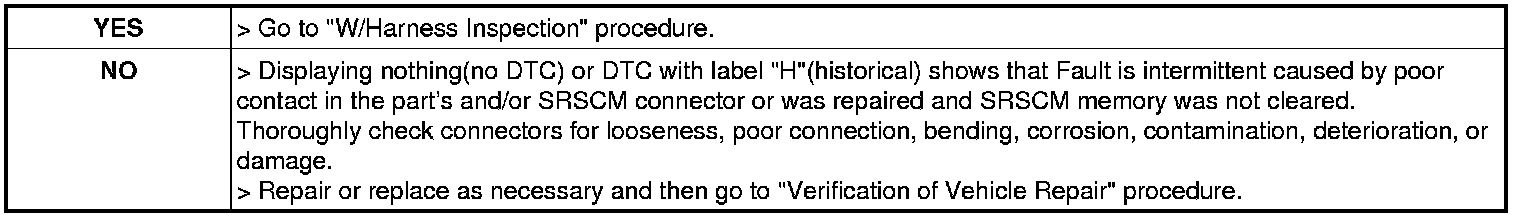

5. Is DTC present problem?
