Repair Procedures

Removal

1. Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2. Remove the front wheel and tire from front hub.





CAUTION:
Be careful not to damage to the hub bolts when removing the front wheel and tire.

3. Remove the front wheel speed sensor cable bracket mounting bolt (A).





CAUTION:
If the bracket mounting bolt (A) is not removed, the front wheel speed sensor cable may be damaged.

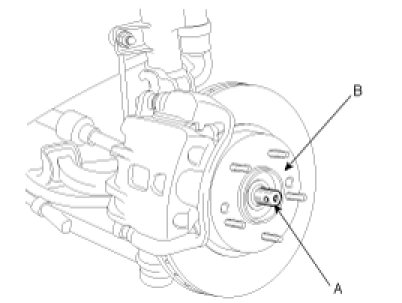

4. Remove the split pin (A), then remove castle nut (B) and washer from the front hub under applying the break.




5. Remove the ball joint assembly mounting bolt (A) from the knuckle.




6. Using a plastic hammer, disconnect driveshaft (A) from the axle hub (B).




7. Insert a pry bar between the transaxle case and joint case, and separate the driveshaft (A) from the transaxle case.

[LH]





[RH]





CAUTION:
- Use a pry bar being careful not to damage the transaxle and joint.
- Do not insert the pry bar too deep, as this may cause damage to the oil seal.
- Do not pull the driveshaft by excessive force it may cause components inside the joint kit to dislodge resulting in a torn boot or a damaged bearing.

8. Pull out the driveshaft (A) from the transaxle case.





CAUTION:
- Plug the hole of the transaxle case with the oil seal cap to prevent contamination.
- Support the driveshaft properly.
- Replace the retainer ring whenever the driveshaft is removed from the transaxle case.

Installation

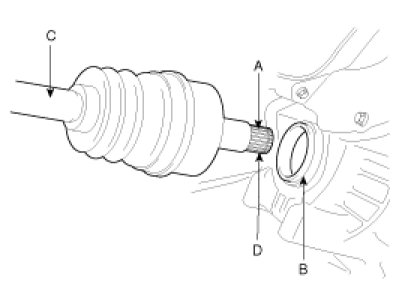

1. Apply gear oil on the oil seal contacting surface (B) of transaxle case and the driveshaft splines (A).

CAUTION:
- Replace circlip with new one.
- Be careful not to install a different kind, when replacing the circlip.




2. Before installing the driveshaft (C), set the opening side of the circlip (D) facing downward.
3. After installation, check that the driveshaft (C) cannot be removed by hand.
4. Install the driveshaft (A) to the axle hub (B).





CAUTION:
- Be careful not to damage and dent the both boots.
- Keep clean without contamination on contacting point between the hub-bearing and BJ.

5. Install the ball joint assembly mounting bolt (A) to the knuckle.

Tightening torque
: 98.1 - 117.7Nm (10 - 12kgf.m, 72.3 - 86.8lb-ft)





6. Install the washer (C), castle nut (B) and split pin (A) to the front hub assembly.

Tightening torque
:196.1 - 274.6Nm (20 - 28kgf.m, 144.7 - 202.5lb-ft)






CAUTION:
The washer (B) should be assembled with convex surface outward when installing the castle nut (A) and split pin (C).




7. Install the front wheel speed sensor cable bracket mounting bolt (A).

Tightening torque
:.9 - 10.8Nm (0.7 - 1.1kgf.m, 5.1 - 8.0lb-ft)





8. Install the wheel and the tire to the front hub.

Tightening torque
: 88.3 - 107.9Nm (9 - 11kgf.m, 65.1 - 79.6lb-ft)






CAUTION:
Be careful not to damage the hub bolts when installing the front wheel and tire.
