Repair procedures (A4CF2)

Removal

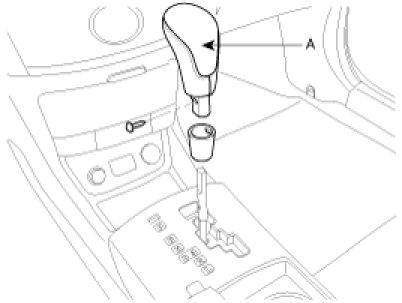

1. Remove the shift lever knob (A).

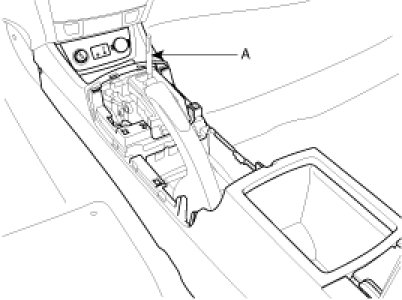

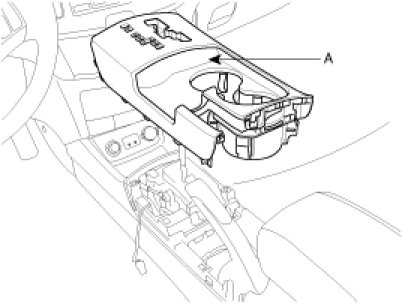

2. Remove the center console cover (A).




3. Remove the center console. (refer to Console in BD group)

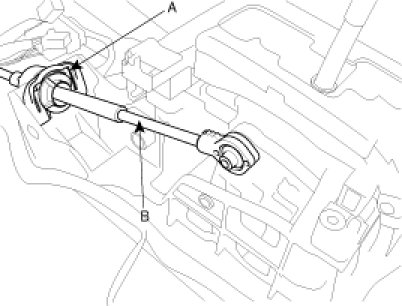

4. Remove the control cable assembly (B) by removing the clamp (A).

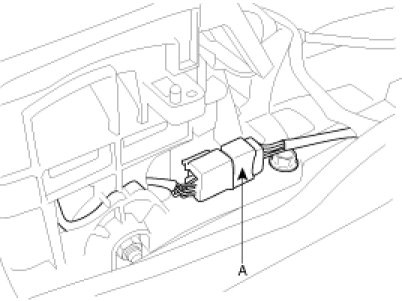

5. Disconnect the interlock switch connector (A).

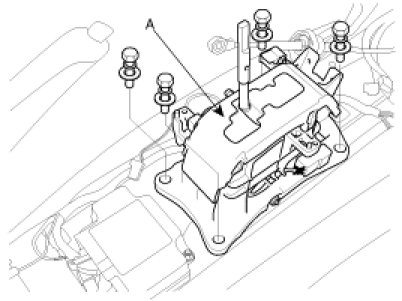

6. Remove the shift lever assembly (A).

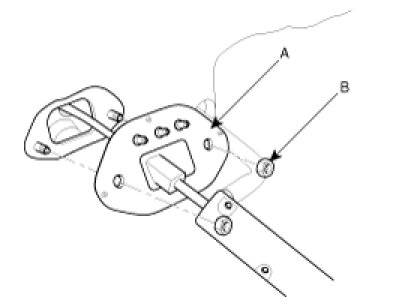

7. Remove the retainer (A) and nuts (B).

NOTE:
In case, remove the crush pad and cowl cross bar. (refer to Crush pad in BD group and Heater unit in HA group)




8. Remove the control cable assembly from the transaxle (refer to Automatic transaxle's removal).
9. Remove the control cable assembly.

Installation

1. Install the control cable assembly to transaxle. (refer to Automatic transaxle's installation)
2. Install the retainer (A) and nuts (B).

Tightening torque :
12-15Nm (1.2-1.5kgf.m, 8.7-10.8Ib-ft)


NOTE:
In case, install the crush pad and cowl cross bar. (refer to Crush pad in BD group and Heater unit in HA group)




3. Install the shift lever assembly (A).

Tightening torque :
9-14Nm (0.9-1.4kgf.m, 8.7-10.8Ib-ft)





4. Connect the interlock switch connector (A).




5. Install the control cable assembly (B) by installing the clamp (A).




6. Install the center console. (refer to Console in BD group)




7. Install the center console cover (A).




8. Install the shift lever knob (A).
