Combination Switch: Testing and Inspection

Inspection

Lighting Switch Inspection
1. With the multi function switch in each position, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch

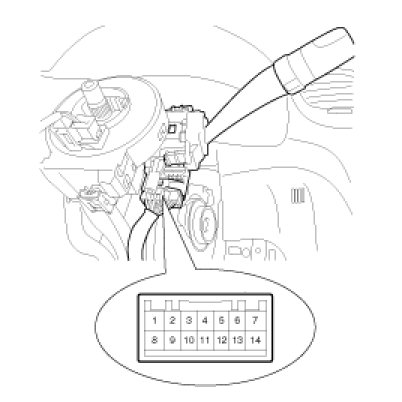

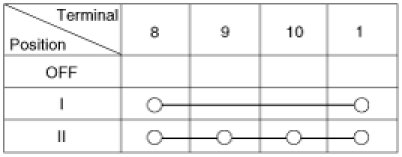

Lighting Switch

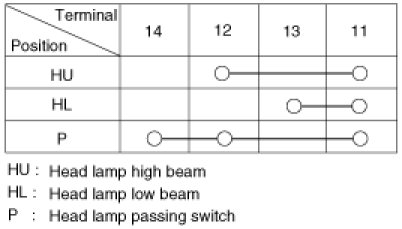

Dimmer And Passing Switch





Turn Signal Switch

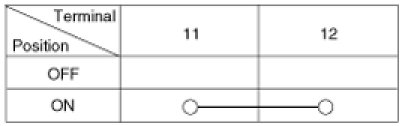

Front Fog Lamp





Wiper And Washer Switch Inspection
1. With the multi function switch in each position, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch.

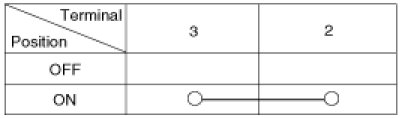

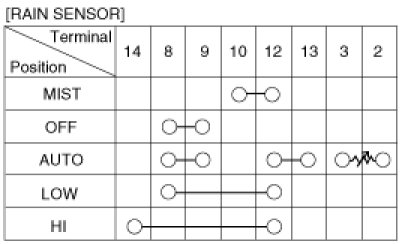

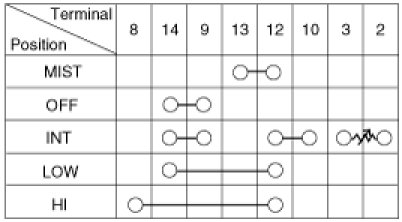

Wiper Switch









Washer Switch
