Evaporator Temperature Sensor / Switch: Service and Repair

Replacement

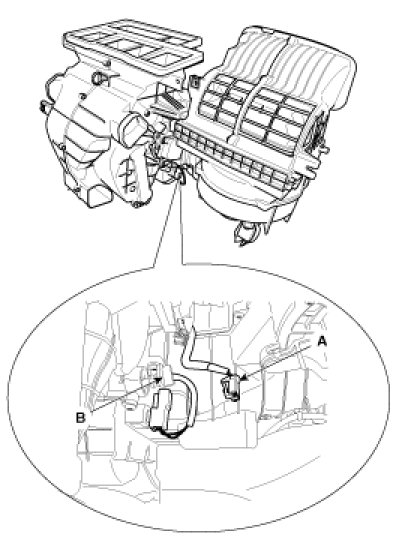

1. Disconnect the evaporator sensor connector(A).
2. Remove the evaporator temperature sensor (B), by pulling it after rotating 90° in a counter clock wise direction.




3. Installation is the reverse order of removal
