Cabin Temperature Sensor / Switch: Testing and Inspection

Inspection

1. Ignition "ON"
2. Blow air into the in car sensor at various temperatures. Measure the resistance between terminals 2 and 4.

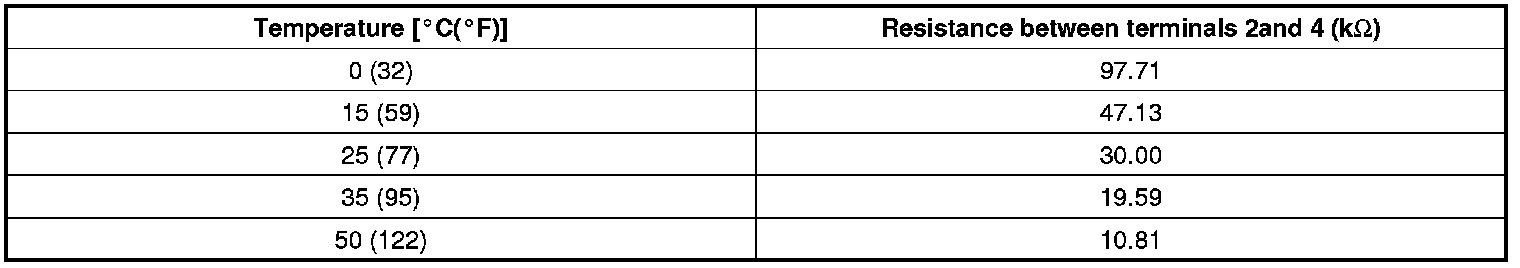

[Specification]






NOTE:
The in car sensor is negative type thermistor where the resistance will increase with lower temperature, and become lower with higher temperature.
