Seat Temperature Switch: Testing and Inspection

Inspection

Front Seat Warmer Switch
1. Disconnect the negative (-) battery terminal.

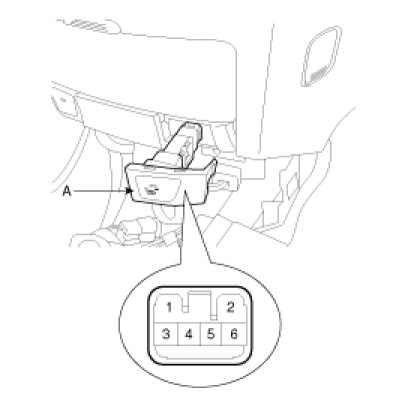

2. Remove the seat warmer switch (A) with a trim removal tool and disconnect the seat warmer connector.

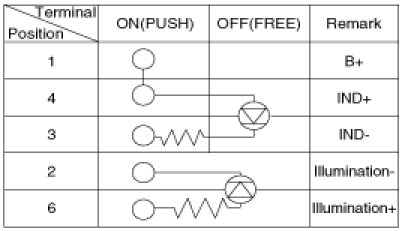

3. Check that continuity exists between the terminals.
