Connector Views

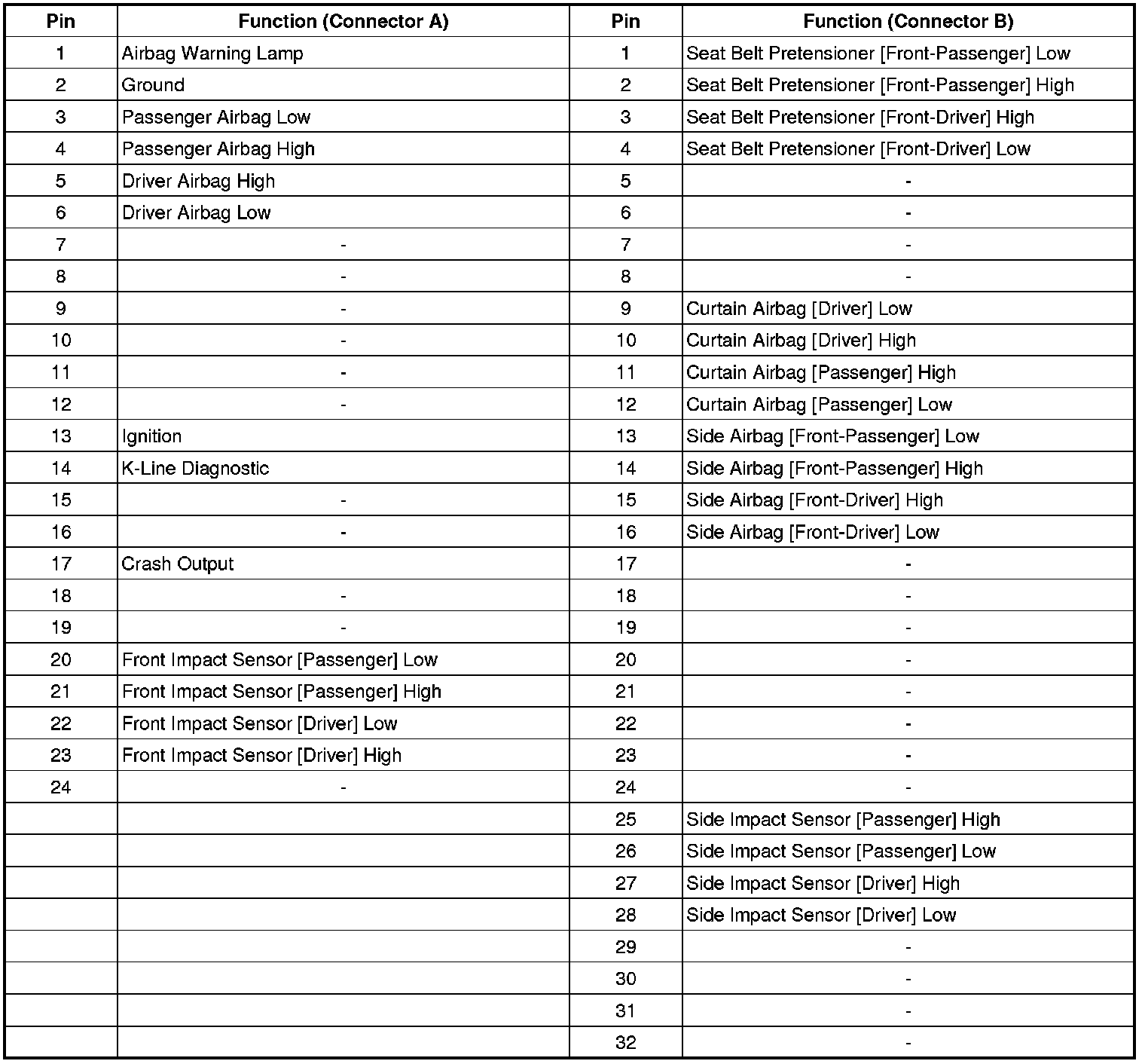

SRSCM Connector Terminal (Depowered)

SRSCM Harness Connector










SRSCM Connector Terminal (Advanced)

SRSCM Harness Connector
