Daytime Running Lamp Control Unit: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

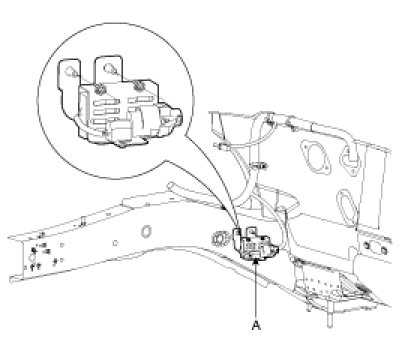

2. Disconnect the connector and then remove the DRL resistor (A) on the front right side inner member after loosening the nuts (2EA).






Installation

1. Install the DRL resistor to the inner member.
2. Connect the DRL resistor connector.
