Diagram Set SD563 (Electronic Power Steering (EPS ) System)

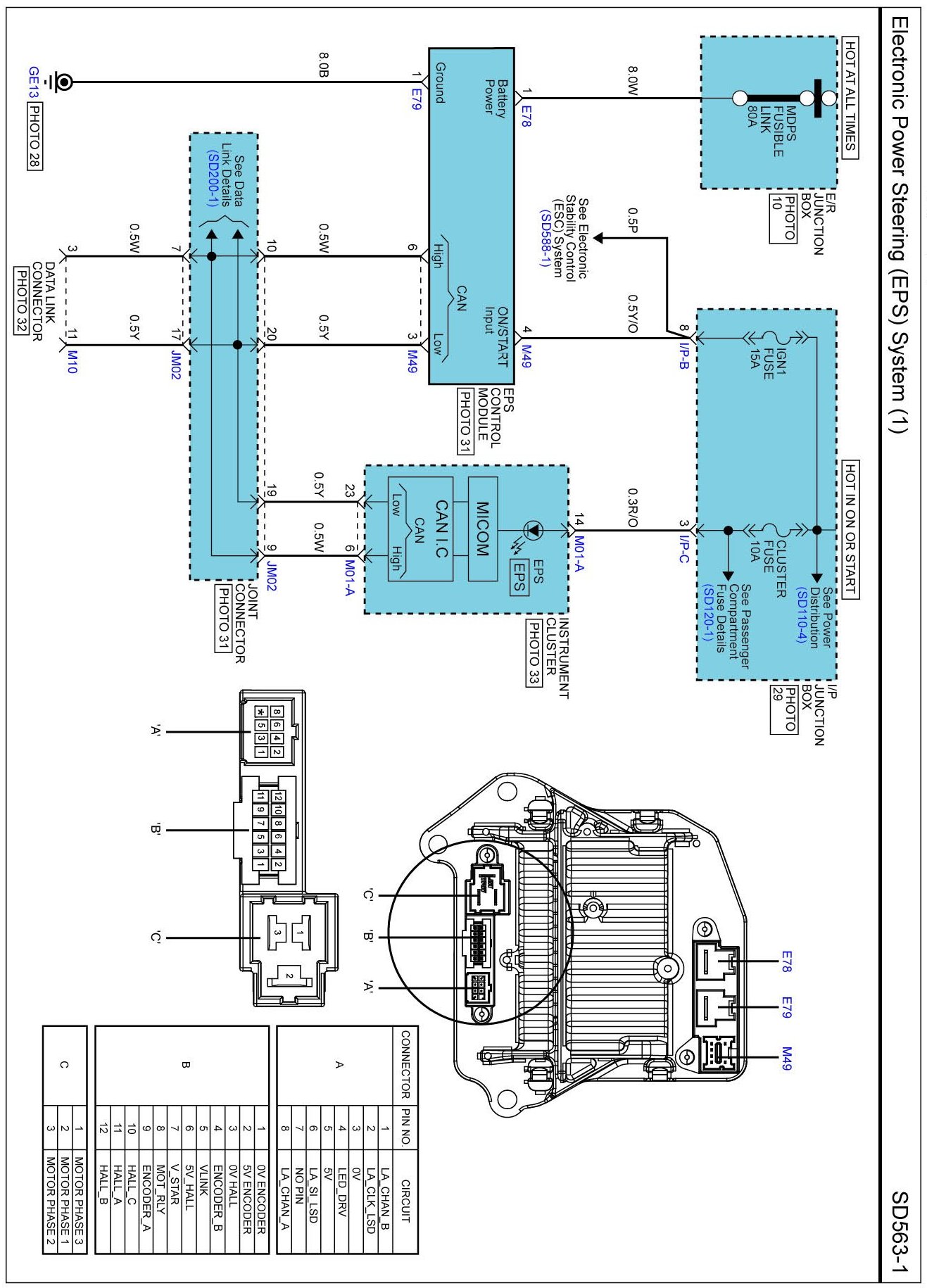

SD563-1 Electronic Power Steering (EPS) System (1):
