Overhaul

Disassembly

1. Remove the reservoir cap and drain the brake fluid into a suitable container.
2. Remove the reservoir (C) from the master cylinder(B) after remove the mounting screw (A).




3. Remove the proportioning valves. (Conventional brake system)

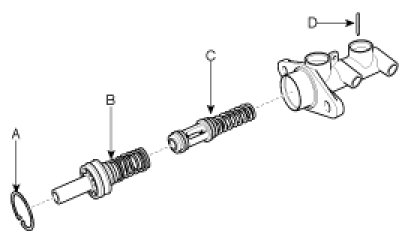

4. Remove the retainer ring (A) by using the snap ring pliers.
5. Remove the primary piston assembly (B).
6. Remove the pin (D) with the secondary piston (C) pushed completely using a screwdriver. Remove the secondary piston assembly (C).





NOTE:
Do not disassemble the primary and secondary piston assembly.

Reassembly

1. Apply genuine brake fluid to the rubber parts of the cylinder kit and grommets.
2. Carefully insert the springs and pistons in the proper direction.
3. Press the secondary piston (C) with a screwdriver and install the cylinder pin (D).




4. Install the primary piston assembly (B) and the retainer ring (A).
5. Install the proportioning valves. (Conventional brake system)




6. Mount two grommets (D).
7. Install the reservoir (C) to the master cylinder (B) and tighten the screw (A).
