Keyless Entry and Burglar Alarm

Inspection

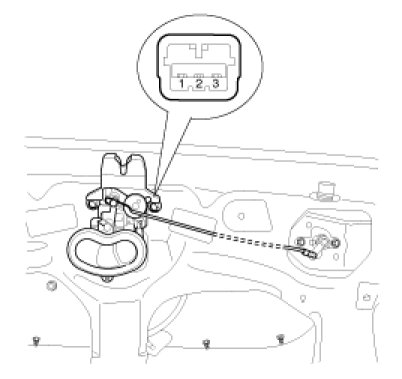

Trunk Lid Switch
1. Remove the trunk trim.
2. Disconnect the 3P connector from the actuator.

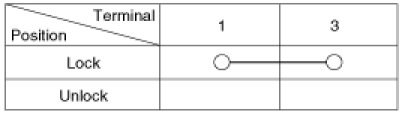

3. Check for continuity between the terminals in each switch position according to the table.
