Front Door Latch: Service and Repair

Replacements

Latch Assembly Replacement
1. Remove the following parts.
A. Door trim.
B. Glass.
C. Out side handle.
2. Remove the module assembly.

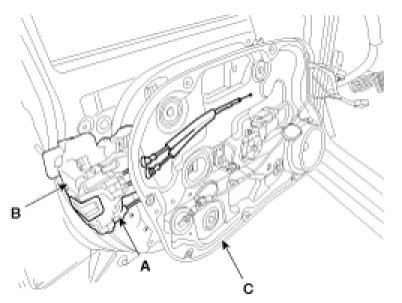

3. Disconnect the latch connector (A), then remove the latch assembly (B).




4. Installation is the reverse the removal.

NOTE:
- Make sure the door locks and opens properly.
